Iron in PDB 9fyi: [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis

Enzymatic activity of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis

All present enzymatic activity of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis:
4.4.1.28;

Protein crystallography data

The structure of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis, PDB code: 9fyi was solved by P.Zecchin, L.Pecqueur, B.Golinelli, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 70.62 / 2.94
Space group P 21 21 21
Cell size a, b, c (Å), α, β, γ (°) 67.121, 79.148, 156.38, 90, 90, 90
R / Rfree (%) 22.2 / 26.1

Iron Binding Sites:

The binding sites of Iron atom in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis (pdb code 9fyi). This binding sites where shown within 5.0 Angstroms radius around Iron atom.
In total 8 binding sites of Iron where determined in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis, PDB code: 9fyi:
Jump to Iron binding site number: 1; 2; 3; 4; 5; 6; 7; 8;

Iron binding site 1 out of 8 in 9fyi

Go back to Iron Binding Sites List in 9fyi

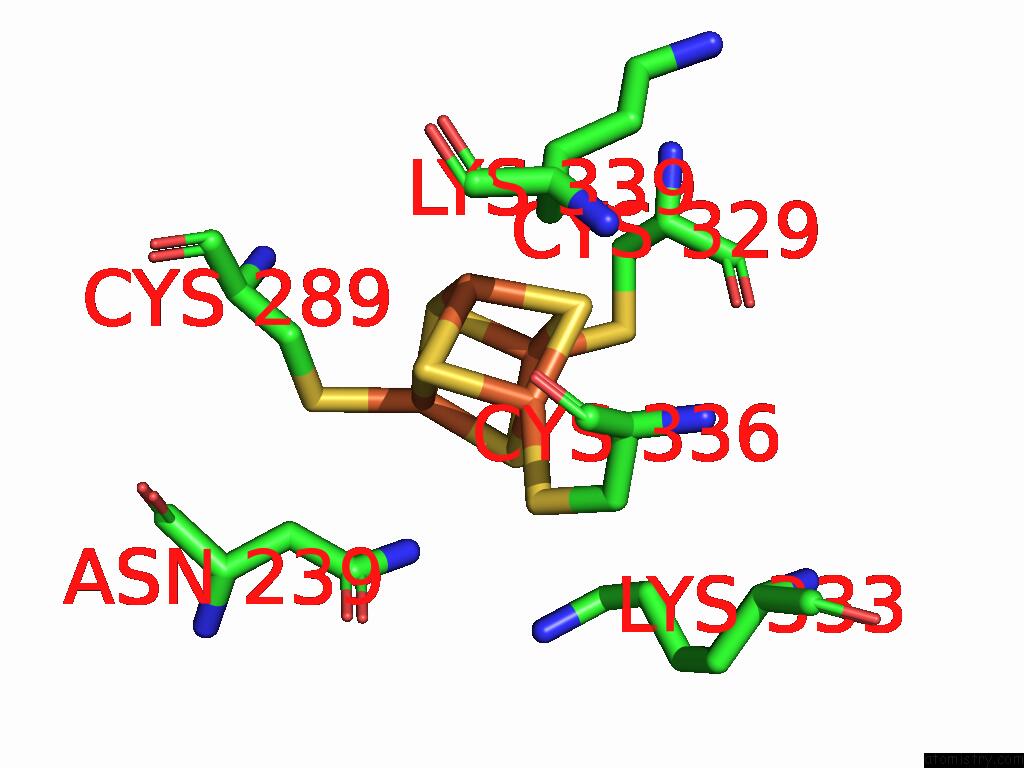

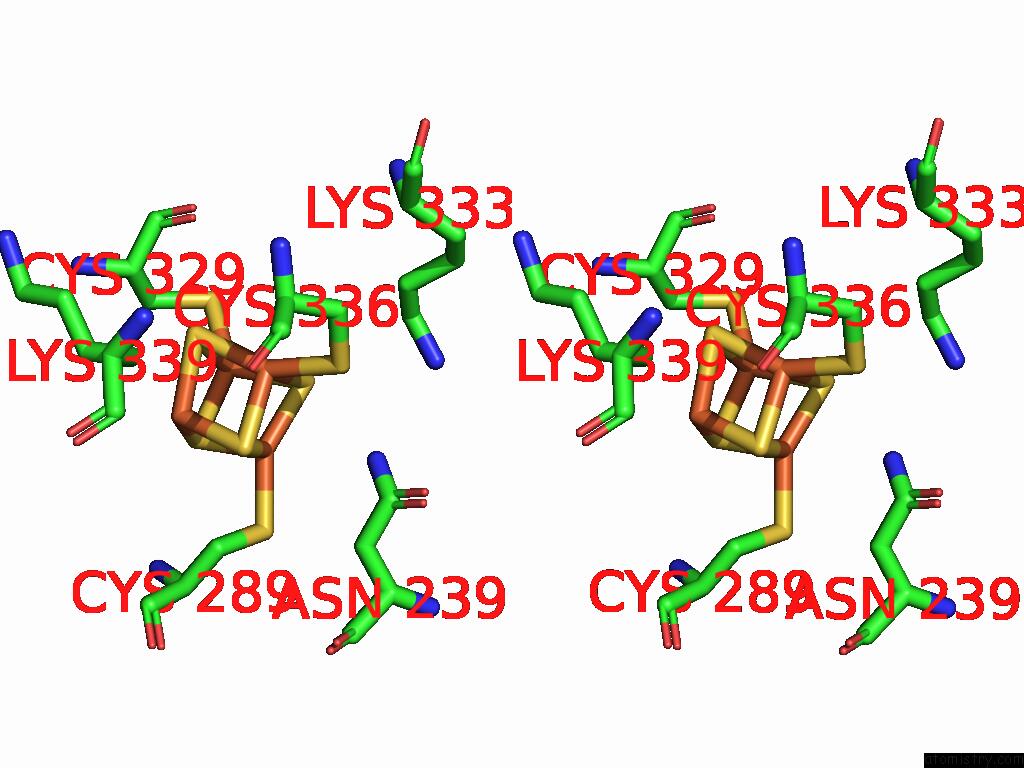

Iron binding site 1 out of 8 in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 1 of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Fe401

b:151.1
occ:0.65
 FE1 A:SF4401 0.0 151.1 0.7
S2 A:SF4401 2.3 151.2 0.7
SG A:CYS336 2.3 113.6 1.0
S4 A:SF4401 2.3 151.2 0.7
S3 A:SF4401 2.3 151.1 0.7
FE3 A:SF4401 2.7 151.5 0.7
FE2 A:SF4401 2.8 151.2 0.7
FE4 A:SF4401 2.8 151.2 0.7
CB A:CYS336 3.3 107.7 1.0
CA A:CYS336 3.4 106.0 1.0
S1 A:SF4401 3.9 151.1 0.7
ND2 A:ASN239 3.9 94.2 1.0
O A:CYS336 4.2 100.9 1.0
C A:CYS336 4.3 101.3 1.0
N A:CYS336 4.5 108.9 1.0
SG A:CYS329 4.5 149.4 1.0
CD A:LYS333 4.7 136.9 1.0
SG A:CYS289 4.8 116.1 1.0
CB A:LYS339 4.8 91.5 1.0
CE A:LYS333 4.9 139.2 1.0

Iron binding site 2 out of 8 in 9fyi

Go back to Iron Binding Sites List in 9fyi

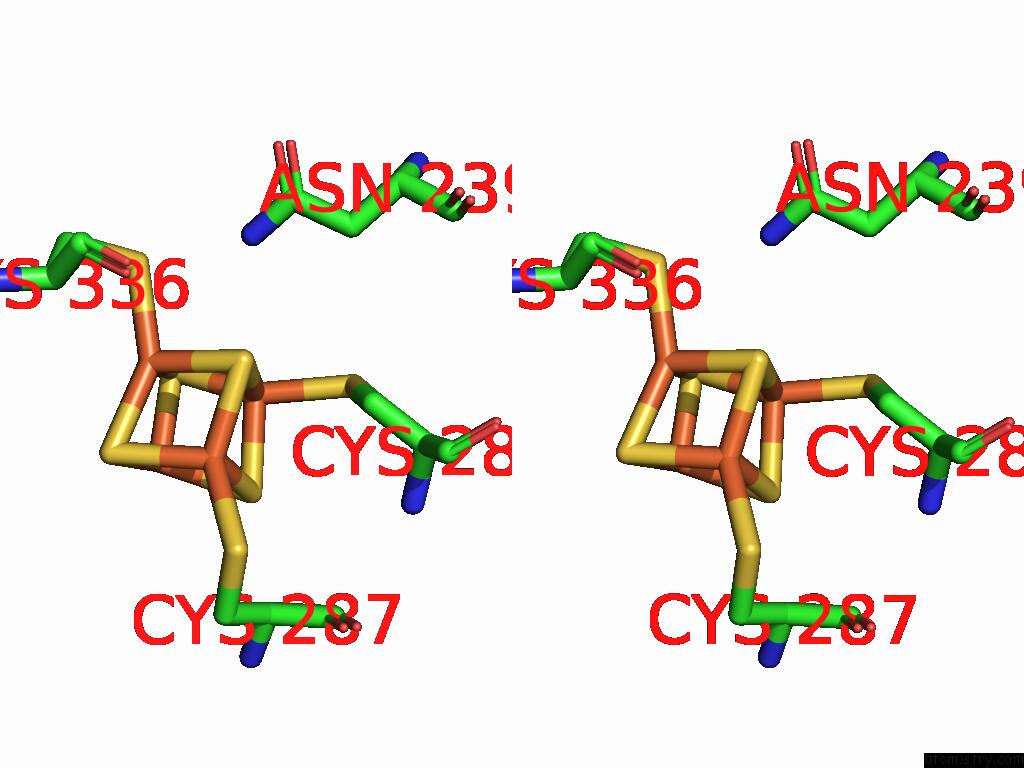

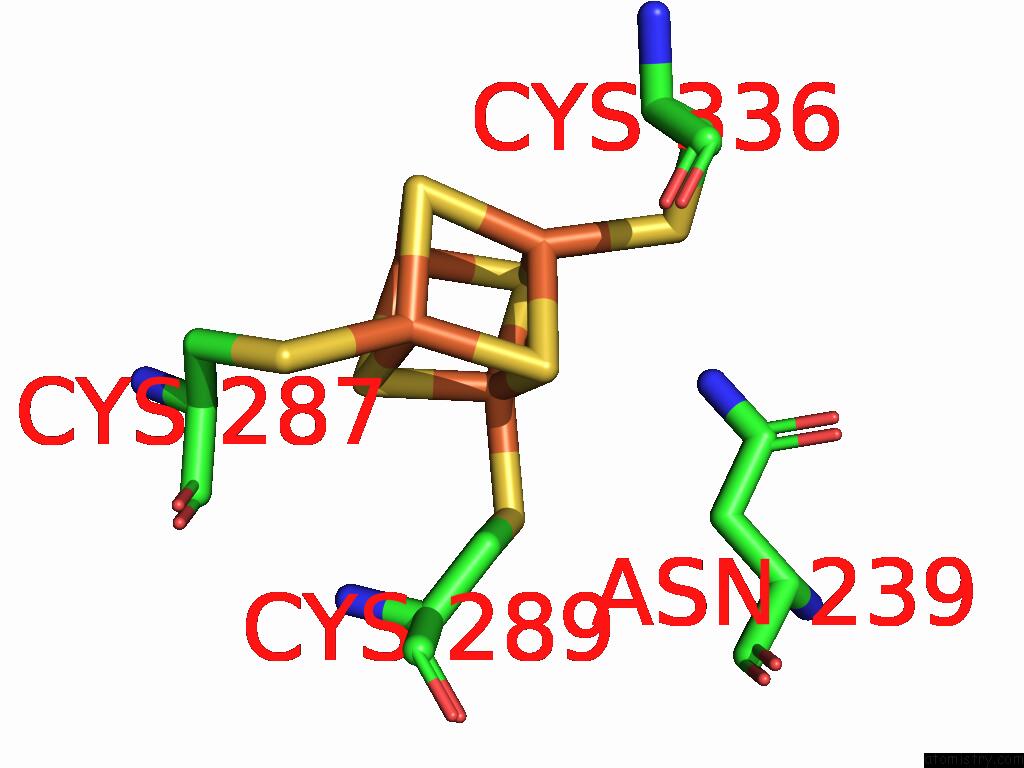

Iron binding site 2 out of 8 in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 2 of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Fe401

b:151.2
occ:0.65
 FE2 A:SF4401 0.0 151.2 0.7
S1 A:SF4401 2.3 151.1 0.7
SG A:CYS289 2.3 116.1 1.0
S3 A:SF4401 2.3 151.1 0.7
S4 A:SF4401 2.3 151.2 0.7
FE4 A:SF4401 2.7 151.2 0.7
FE1 A:SF4401 2.8 151.1 0.7
FE3 A:SF4401 2.8 151.5 0.7
CB A:CYS289 3.2 108.5 1.0
ND2 A:ASN239 3.7 94.2 1.0
S2 A:SF4401 3.9 151.2 0.7
SG A:CYS336 4.1 113.6 1.0
CA A:CYS289 4.5 106.5 1.0
CB A:ASN239 4.5 88.5 1.0
N A:CYS289 4.6 107.8 1.0
CG A:ASN239 4.6 93.1 1.0
SG A:CYS287 4.8 126.2 1.0

Iron binding site 3 out of 8 in 9fyi

Go back to Iron Binding Sites List in 9fyi

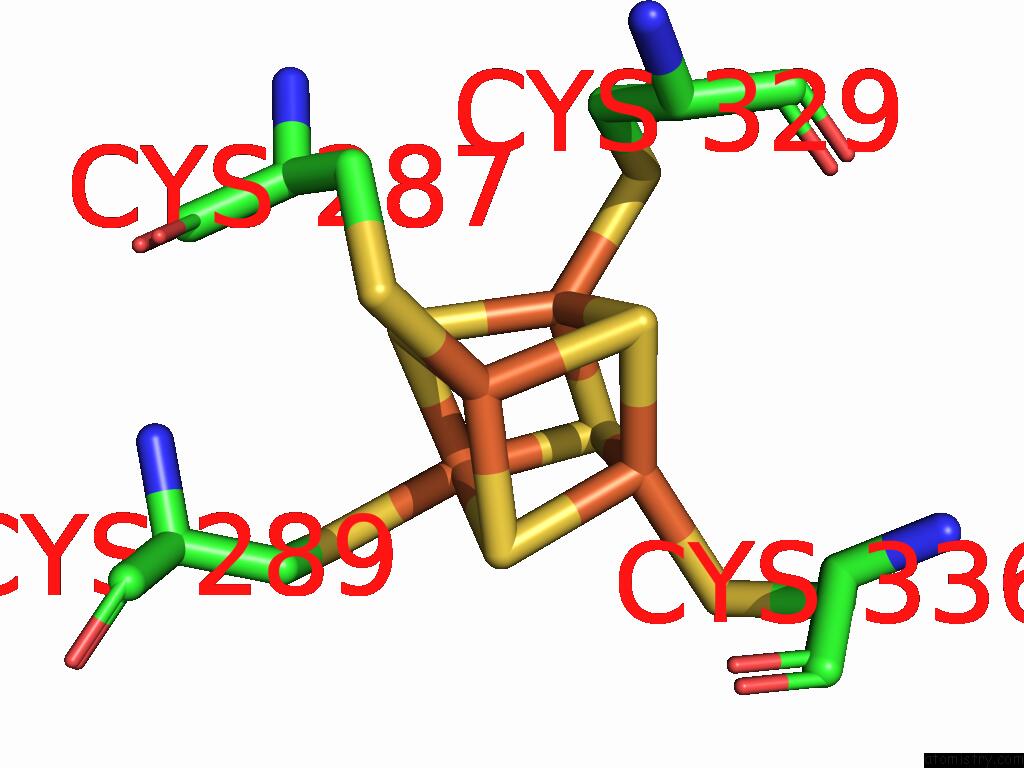

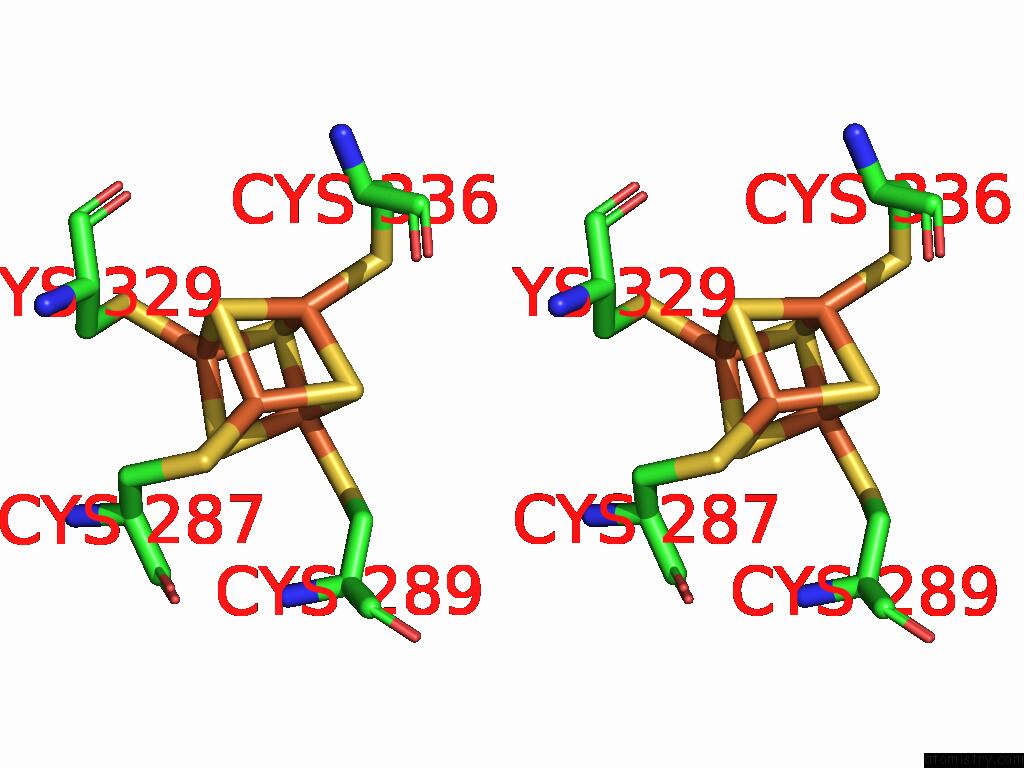

Iron binding site 3 out of 8 in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 3 of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Fe401

b:151.5
occ:0.65
 FE3 A:SF4401 0.0 151.5 0.7
S4 A:SF4401 2.3 151.2 0.7
S1 A:SF4401 2.3 151.1 0.7
S2 A:SF4401 2.3 151.2 0.7
SG A:CYS329 2.3 149.4 1.0
FE1 A:SF4401 2.7 151.1 0.7
FE2 A:SF4401 2.8 151.2 0.7
FE4 A:SF4401 2.8 151.2 0.7
CB A:CYS329 3.1 142.5 1.0
S3 A:SF4401 3.9 151.1 0.7
CA A:CYS329 3.9 140.4 1.0
SG A:CYS287 4.5 126.2 1.0
CA A:CYS287 4.5 116.4 1.0
CB A:CYS287 4.5 118.7 1.0
O A:CYS329 4.6 139.5 1.0
C A:CYS329 4.7 139.8 1.0
SG A:CYS336 4.8 113.6 1.0
SG A:CYS289 4.9 116.1 1.0

Iron binding site 4 out of 8 in 9fyi

Go back to Iron Binding Sites List in 9fyi

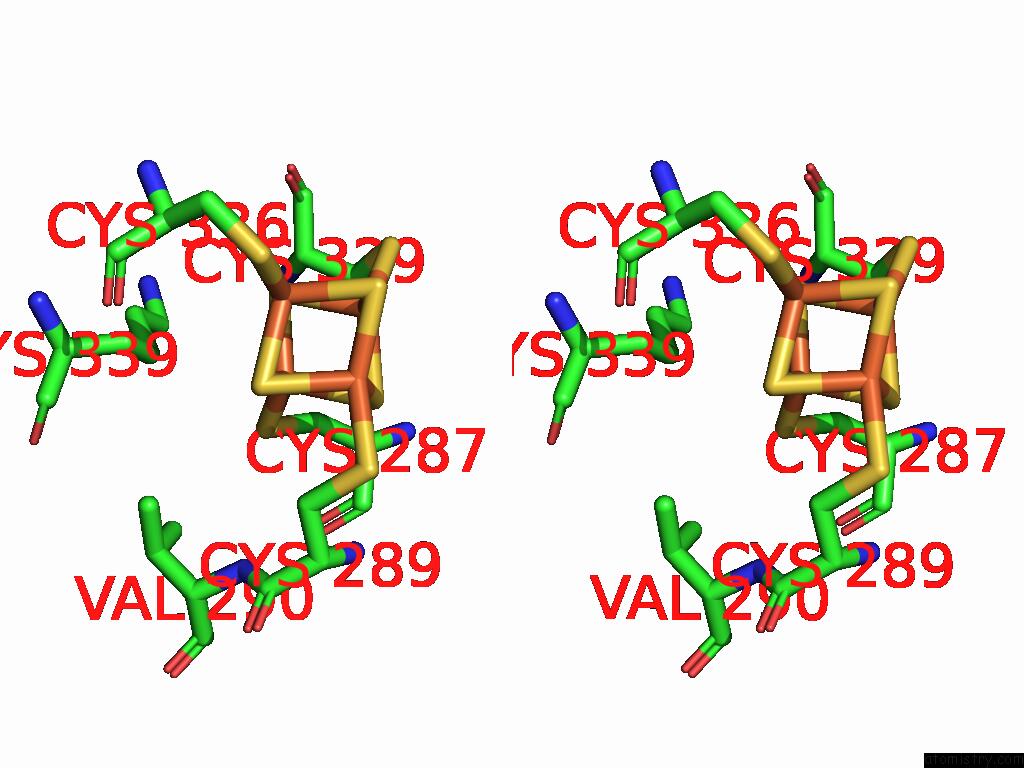

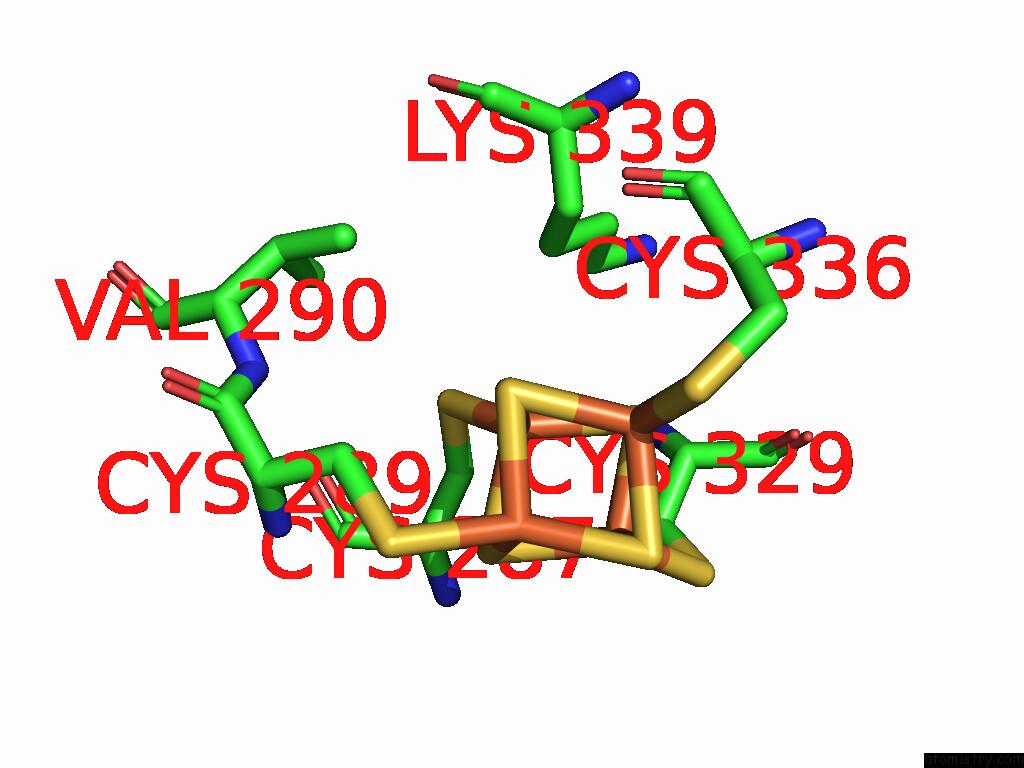

Iron binding site 4 out of 8 in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 4 of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Fe401

b:151.2
occ:0.65
 FE4 A:SF4401 0.0 151.2 0.7
S3 A:SF4401 2.3 151.1 0.7
S1 A:SF4401 2.3 151.1 0.7
S2 A:SF4401 2.3 151.2 0.7
SG A:CYS287 2.3 126.2 1.0
FE2 A:SF4401 2.7 151.2 0.7
FE3 A:SF4401 2.8 151.5 0.7
FE1 A:SF4401 2.8 151.1 0.7
CB A:CYS287 3.4 118.7 1.0
CB A:CYS289 3.8 108.5 1.0
CA A:CYS287 3.9 116.4 1.0
S4 A:SF4401 3.9 151.2 0.7
CG A:LYS339 4.1 98.8 1.0
SG A:CYS289 4.1 116.1 1.0
CB A:LYS339 4.2 91.5 1.0
CB A:CYS329 4.4 142.5 1.0
C A:CYS287 4.5 114.9 1.0
SG A:CYS329 4.6 149.4 1.0
CG1 A:VAL290 4.7 101.0 1.0
N A:CYS289 4.7 107.8 1.0
CA A:CYS329 4.7 140.4 1.0
CA A:CYS289 4.8 106.5 1.0
O A:CYS287 4.8 115.2 1.0
N A:VAL290 4.9 101.3 1.0
SG A:CYS336 4.9 113.6 1.0

Iron binding site 5 out of 8 in 9fyi

Go back to Iron Binding Sites List in 9fyi

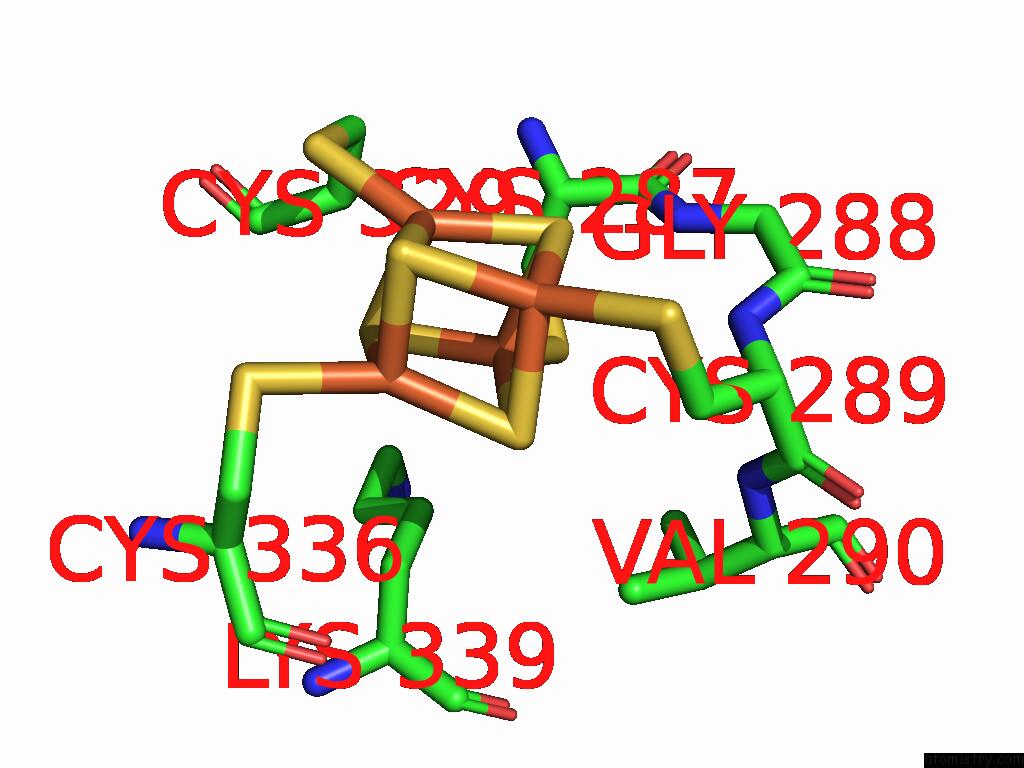

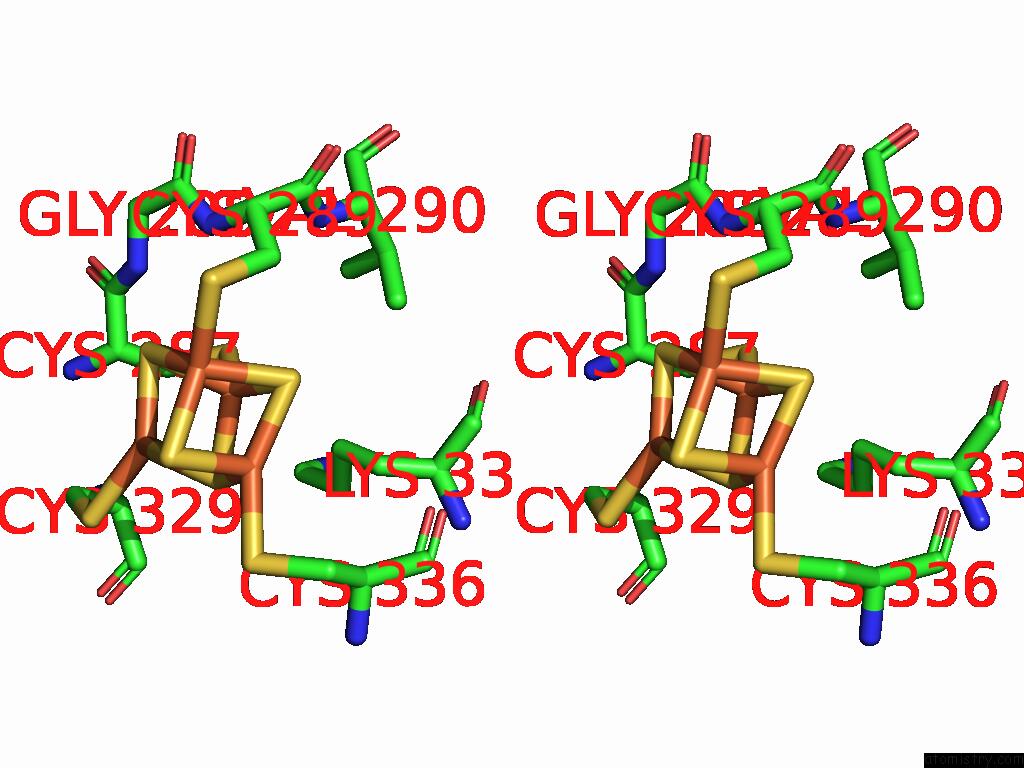

Iron binding site 5 out of 8 in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 5 of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Fe401

b:153.5
occ:0.65
 FE1 B:SF4401 0.0 153.5 0.7
S2 B:SF4401 2.3 153.4 0.7
S3 B:SF4401 2.3 153.5 0.7
S4 B:SF4401 2.3 153.4 0.7
SG B:CYS287 2.3 142.8 1.0
FE3 B:SF4401 2.7 153.5 0.7
FE2 B:SF4401 2.8 153.7 0.7
FE4 B:SF4401 2.8 153.5 0.7
CB B:CYS287 3.5 136.7 1.0
CA B:CYS287 3.8 134.9 1.0
S1 B:SF4401 3.9 153.6 0.7
N B:GLY288 4.1 132.5 1.0
N B:CYS289 4.1 128.3 1.0
CB B:CYS289 4.1 128.8 1.0
CG B:LYS339 4.2 107.5 1.0
SG B:CYS289 4.4 134.9 1.0
CB B:LYS339 4.5 101.7 1.0
C B:CYS287 4.5 134.1 1.0
CA B:CYS289 4.7 127.2 1.0
CG1 B:VAL290 4.7 123.3 1.0
N B:VAL290 4.7 123.4 1.0
SG B:CYS329 4.7 160.0 1.0
CA B:CYS329 4.8 153.7 1.0
SG B:CYS336 4.9 124.9 1.0
CB B:CYS329 5.0 155.1 1.0

Iron binding site 6 out of 8 in 9fyi

Go back to Iron Binding Sites List in 9fyi

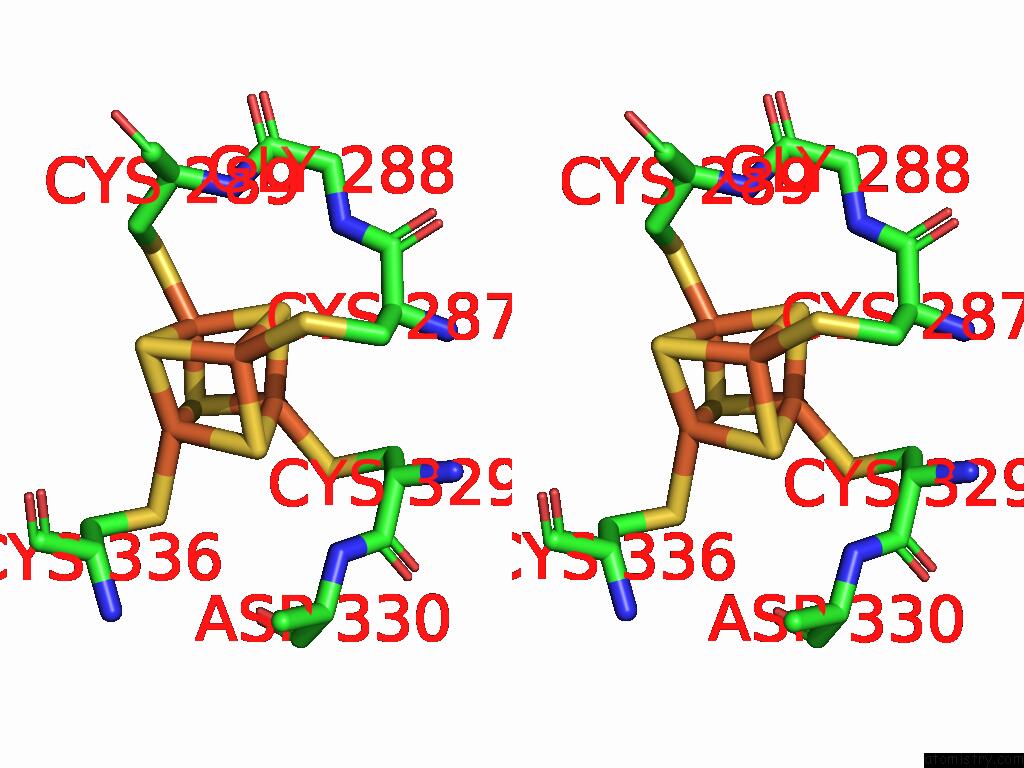

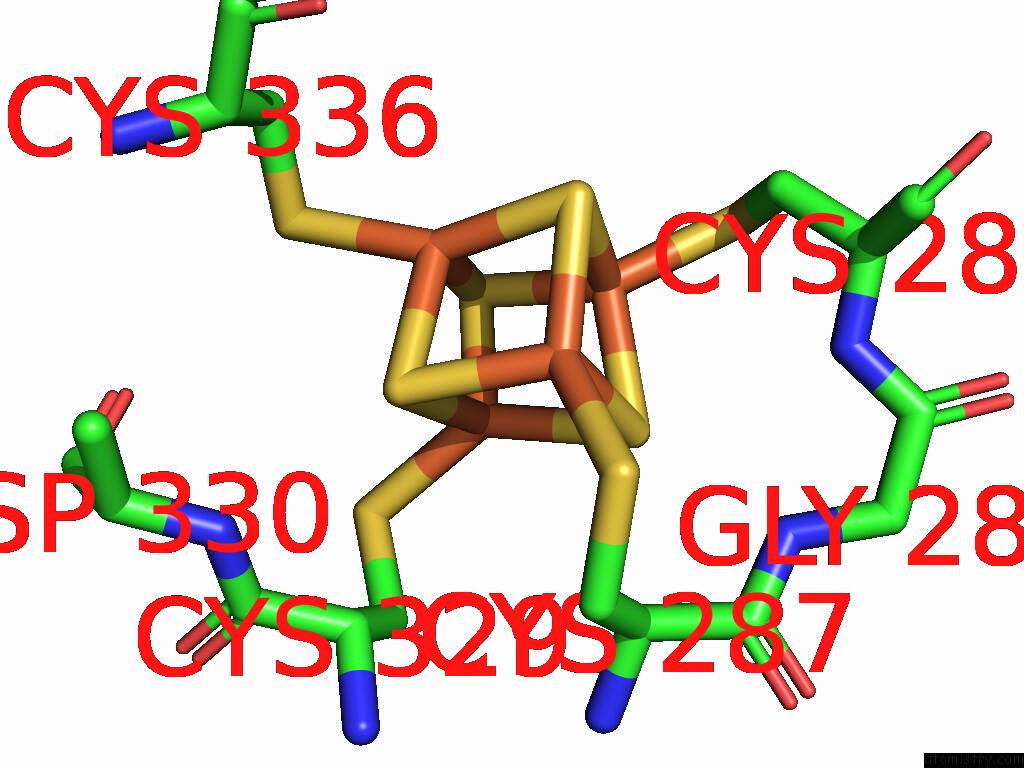

Iron binding site 6 out of 8 in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 6 of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Fe401

b:153.7
occ:0.65
 FE2 B:SF4401 0.0 153.7 0.7
S4 B:SF4401 2.3 153.4 0.7
S1 B:SF4401 2.3 153.6 0.7
S3 B:SF4401 2.3 153.5 0.7
SG B:CYS329 2.3 160.0 1.0
FE1 B:SF4401 2.8 153.5 0.7
FE3 B:SF4401 2.8 153.5 0.7
FE4 B:SF4401 2.8 153.5 0.7
CB B:CYS329 3.3 155.1 1.0
CA B:CYS329 3.8 153.7 1.0
S2 B:SF4401 3.9 153.4 0.7
SG B:CYS336 4.1 124.9 1.0
CA B:CYS287 4.2 134.9 1.0
SG B:CYS287 4.4 142.8 1.0
CB B:CYS287 4.5 136.7 1.0
C B:CYS329 4.6 153.7 1.0
N B:ASP330 4.7 153.2 1.0
N B:CYS287 4.8 134.4 1.0
SG B:CYS289 4.9 134.9 1.0
N B:GLY288 5.0 132.5 1.0

Iron binding site 7 out of 8 in 9fyi

Go back to Iron Binding Sites List in 9fyi

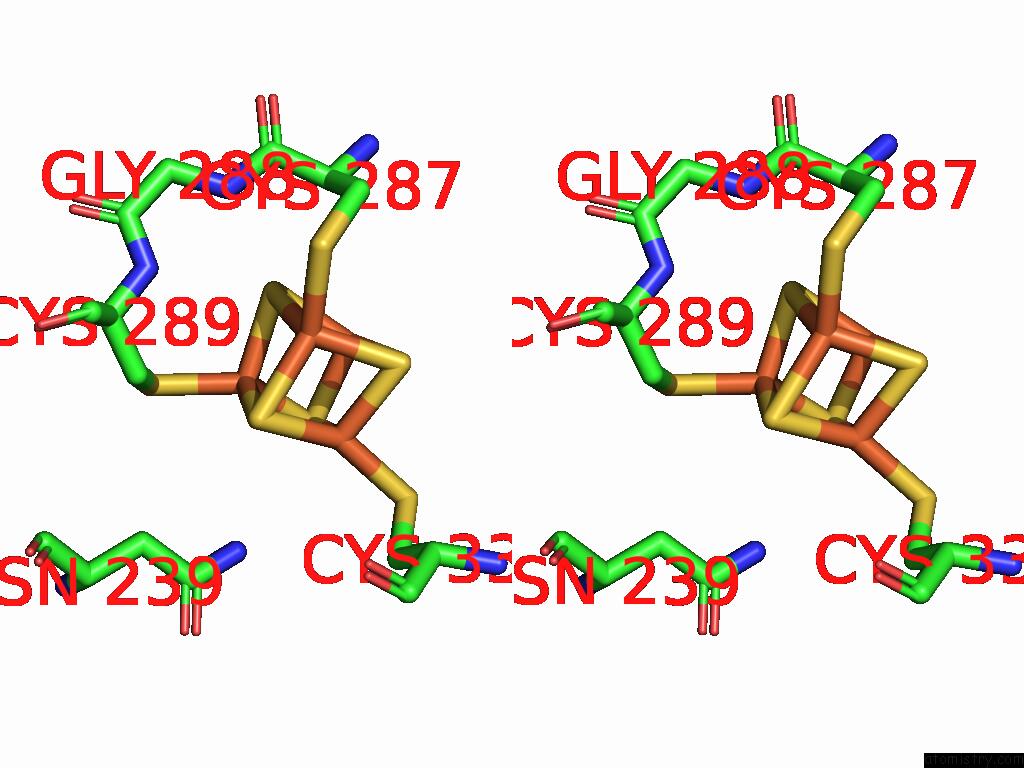

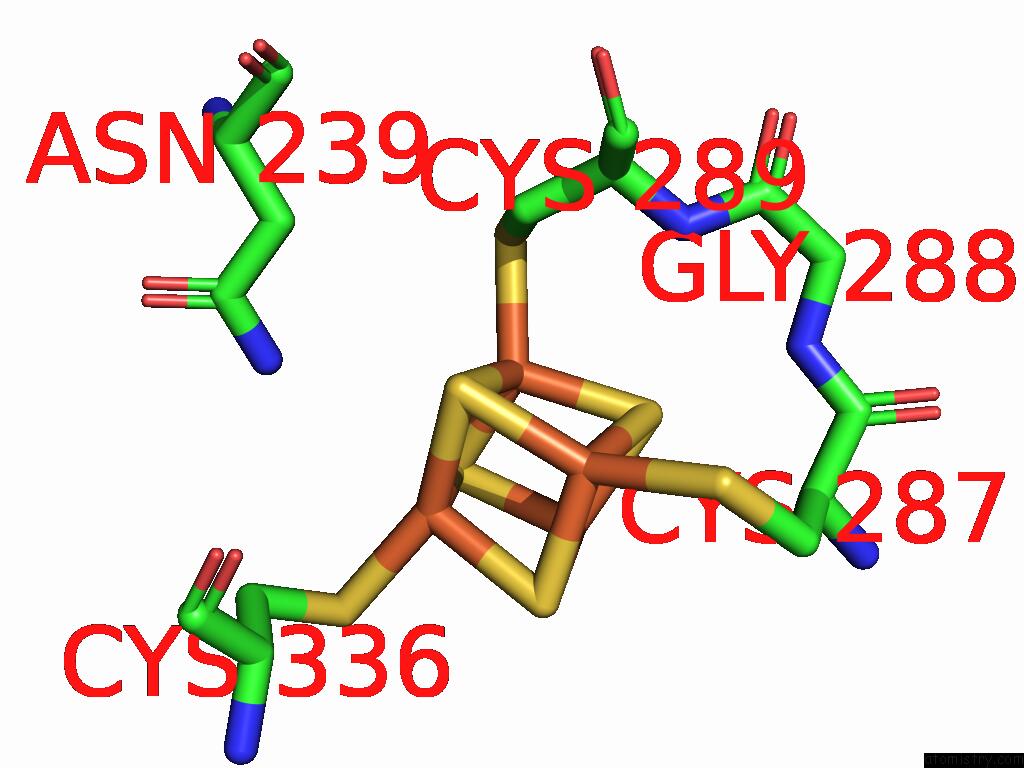

Iron binding site 7 out of 8 in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 7 of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Fe401

b:153.5
occ:0.65
 FE3 B:SF4401 0.0 153.5 0.7
SG B:CYS289 2.3 134.9 1.0
S4 B:SF4401 2.3 153.4 0.7
S1 B:SF4401 2.3 153.6 0.7
S2 B:SF4401 2.3 153.4 0.7
FE1 B:SF4401 2.7 153.5 0.7
FE2 B:SF4401 2.8 153.7 0.7
FE4 B:SF4401 2.8 153.5 0.7
CB B:CYS289 3.1 128.8 1.0
S3 B:SF4401 3.9 153.5 0.7
N B:CYS289 3.9 128.3 1.0
ND2 B:ASN239 4.1 110.9 1.0
CA B:CYS289 4.1 127.2 1.0
CB B:ASN239 4.6 105.4 1.0
N B:GLY288 4.8 132.5 1.0
SG B:CYS336 4.8 124.9 1.0
SG B:CYS287 4.8 142.8 1.0
CG B:ASN239 4.9 109.8 1.0

Iron binding site 8 out of 8 in 9fyi

Go back to Iron Binding Sites List in 9fyi

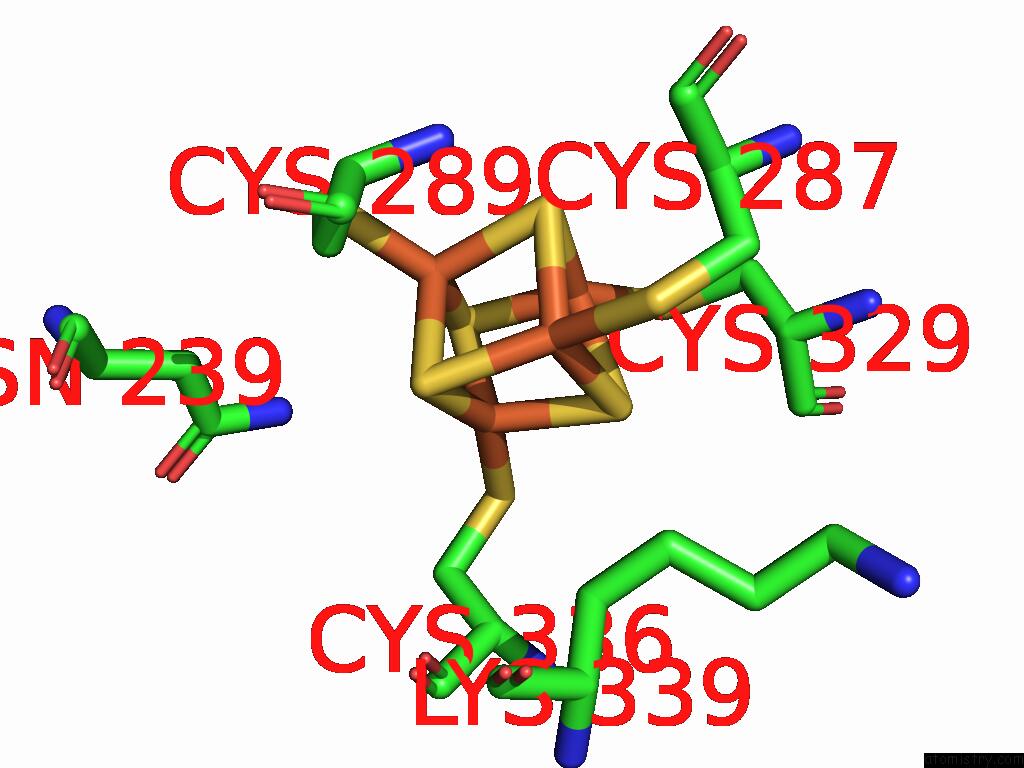

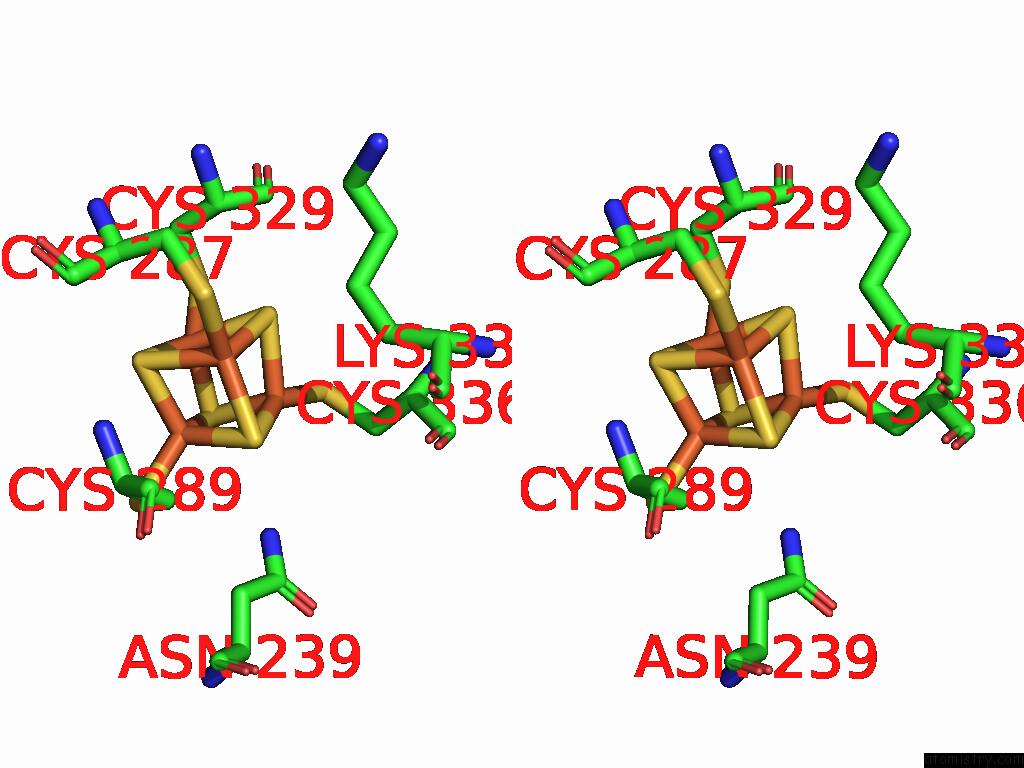

Iron binding site 8 out of 8 in the [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 8 of [4FE-4S] Cluster-Containing L-Cysteine Desulfidase Cyua From Methanococcus Maripaludis within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Fe401

b:153.5
occ:0.65
 FE4 B:SF4401 0.0 153.5 0.7
S2 B:SF4401 2.3 153.4 0.7
S3 B:SF4401 2.3 153.5 0.7
SG B:CYS336 2.3 124.9 1.0
S1 B:SF4401 2.3 153.6 0.7
FE2 B:SF4401 2.8 153.7 0.7
FE3 B:SF4401 2.8 153.5 0.7
FE1 B:SF4401 2.8 153.5 0.7
CB B:CYS336 3.1 119.0 1.0
CA B:CYS336 3.8 117.6 1.0
S4 B:SF4401 3.9 153.4 0.7
ND2 B:ASN239 3.9 110.9 1.0
SG B:CYS329 4.4 160.0 1.0
O B:CYS336 4.6 114.1 1.0
C B:CYS336 4.7 114.2 1.0
CB B:LYS339 4.7 101.7 1.0
SG B:CYS289 4.8 134.9 1.0
N B:CYS336 4.8 119.7 1.0
CG B:ASN239 4.9 109.8 1.0
SG B:CYS287 5.0 142.8 1.0

Reference:

P.Zecchin, B.Golinelli. Insights Into the Phylogenetic Distribution, Structure and Function of [4FE-4S]-Dependent L-Cysteine Desulfidase, An Enzyme That Supplies Sulfide to the Archaeon Methanococcus Maripaludis To Be Published.
