Iron in PDB 9iux: X-Ray Crystal Structure of Human Hemoglobin Subunit Mu C49S/C104S Mutant

The structure of X-Ray Crystal Structure of Human Hemoglobin Subunit Mu C49S/C104S Mutant, PDB code: 9iux was solved by Y.W.Lin, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	32.85 / 1.53
Space group	P 43 21 2
Cell size a, b, c (Å), α, β, γ (°)	40.63, 40.63, 167.429, 90, 90, 90
R / Rfree (%)	17.3 / 20.1

The binding sites of Iron atom in the X-Ray Crystal Structure of Human Hemoglobin Subunit Mu C49S/C104S Mutant (pdb code 9iux). This binding sites where shown within 5.0 Angstroms radius around Iron atom.
In total only one binding site of Iron was determined in the X-Ray Crystal Structure of Human Hemoglobin Subunit Mu C49S/C104S Mutant, PDB code: 9iux:

Iron binding site 1 out of 1 in the X-Ray Crystal Structure of Human Hemoglobin Subunit Mu C49S/C104S Mutant

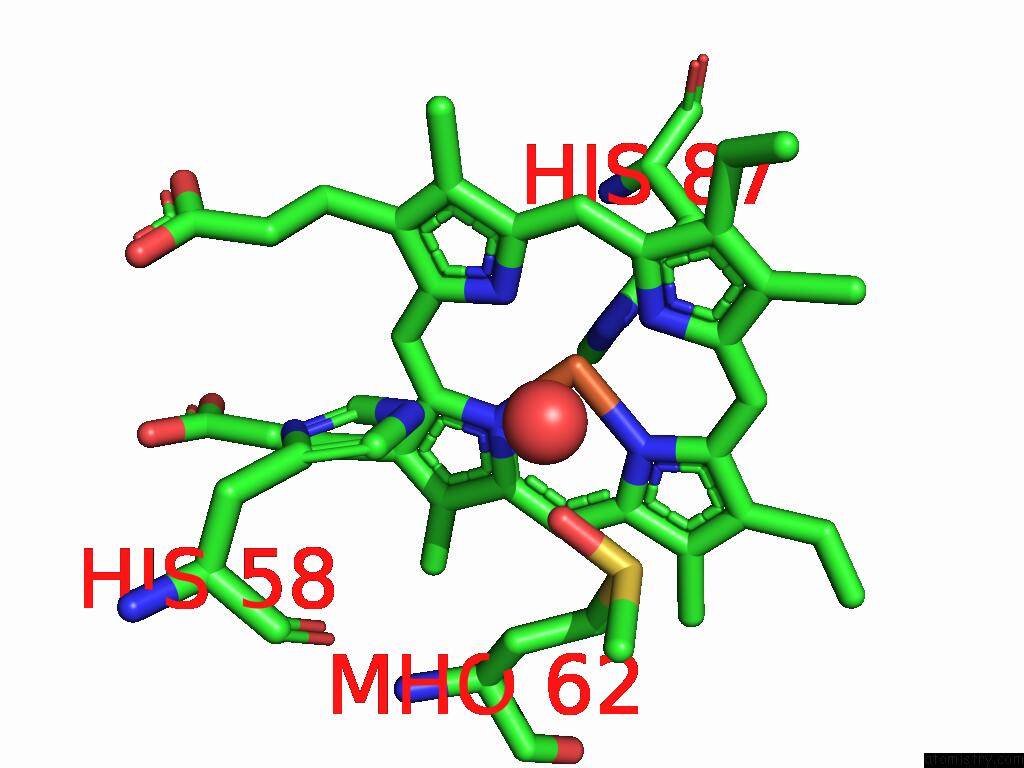

Mono view

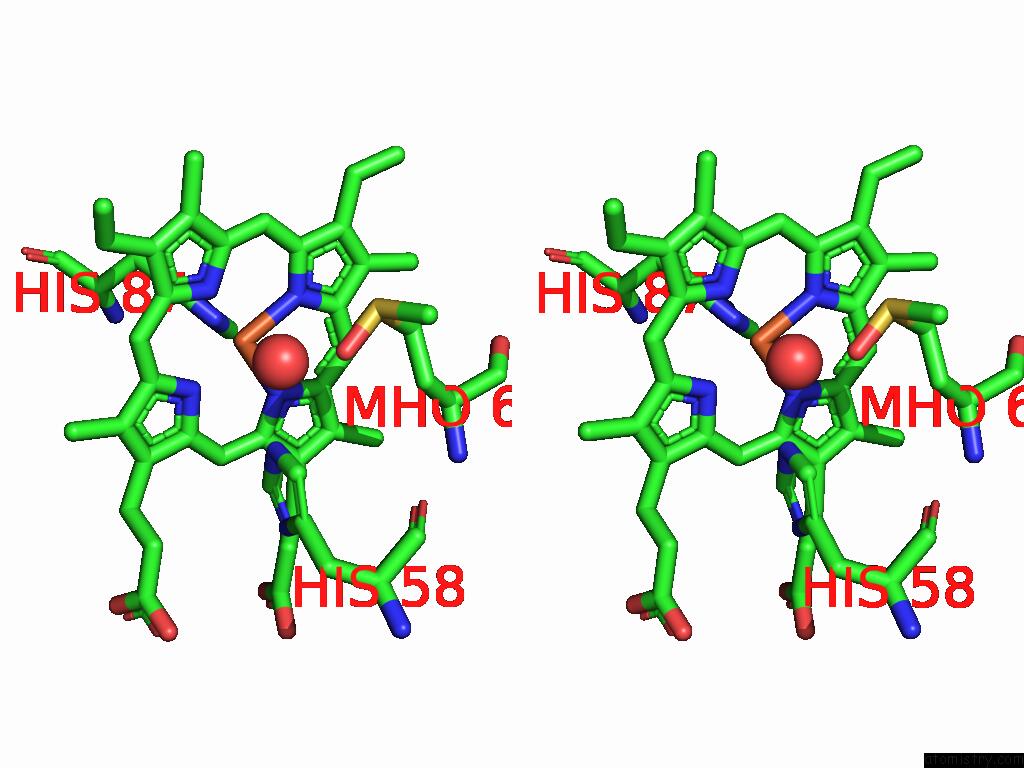

Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 1 of X-Ray Crystal Structure of Human Hemoglobin Subunit Mu C49S/C104S Mutant within 5.0Å range: probe atom residue distance (Å) B Occ A:Fe201 b:10.8 occ:1.00 FE A:HEM201 0.0 10.8 1.0 NB A:HEM201 2.0 9.4 1.0 NA A:HEM201 2.0 9.5 1.0 NC A:HEM201 2.0 10.7 1.0 ND A:HEM201 2.0 12.1 1.0 NE2 A:HIS87 2.1 9.6 1.0 O A:HOH302 2.3 16.4 1.0 CE1 A:HIS87 3.0 11.0 1.0 C4A A:HEM201 3.0 9.8 1.0 C1C A:HEM201 3.0 9.9 1.0 C4B A:HEM201 3.0 9.9 1.0 C1B A:HEM201 3.0 8.7 1.0 C1D A:HEM201 3.0 11.3 1.0 C4C A:HEM201 3.1 9.3 1.0 C1A A:HEM201 3.1 12.6 1.0 C4D A:HEM201 3.1 13.1 1.0 CD2 A:HIS87 3.1 10.1 1.0 CHC A:HEM201 3.4 10.2 1.0 CHD A:HEM201 3.4 10.8 1.0 CHB A:HEM201 3.4 9.8 1.0 CHA A:HEM201 3.4 12.2 1.0 ND1 A:HIS87 4.2 9.0 1.0 CG A:HIS87 4.2 10.2 1.0 C3A A:HEM201 4.2 12.3 1.0 C2B A:HEM201 4.3 8.9 1.0 C2C A:HEM201 4.3 9.9 1.0 C3B A:HEM201 4.3 10.3 1.0 C2D A:HEM201 4.3 12.5 1.0 NE2 A:HIS58 4.3 19.0 1.0 C2A A:HEM201 4.3 13.3 1.0 C3C A:HEM201 4.3 10.9 1.0 C3D A:HEM201 4.3 13.0 1.0 OD1 A:MHO62 4.4 35.3 1.0 CE1 A:HIS58 4.5 27.6 1.0 SD A:MHO62 4.9 29.2 1.0 CG A:MHO62 4.9 15.2 1.0

Y.W.Lin, Y.W.Lin. N/A N/A.
