Iron in PDB 9c1y: Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine

Enzymatic activity of Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine

All present enzymatic activity of Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine:
1.14.13.39;

Protein crystallography data

The structure of Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine, PDB code: 9c1y was solved by H.Li, T.L.Poulos, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 49.68 / 2.30
Space group P 1 21 1
Cell size a, b, c (Å), α, β, γ (°) 51.973, 164.131, 118.63, 90, 90, 90
R / Rfree (%) 19.4 / 26.3

Other elements in 9c1y:

The structure of Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine also contains other interesting chemical elements:

Zinc (Zn) 2 atoms

Iron Binding Sites:

The binding sites of Iron atom in the Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine (pdb code 9c1y). This binding sites where shown within 5.0 Angstroms radius around Iron atom.
In total 4 binding sites of Iron where determined in the Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine, PDB code: 9c1y:
Jump to Iron binding site number: 1; 2; 3; 4;

Iron binding site 1 out of 4 in 9c1y

Go back to Iron Binding Sites List in 9c1y

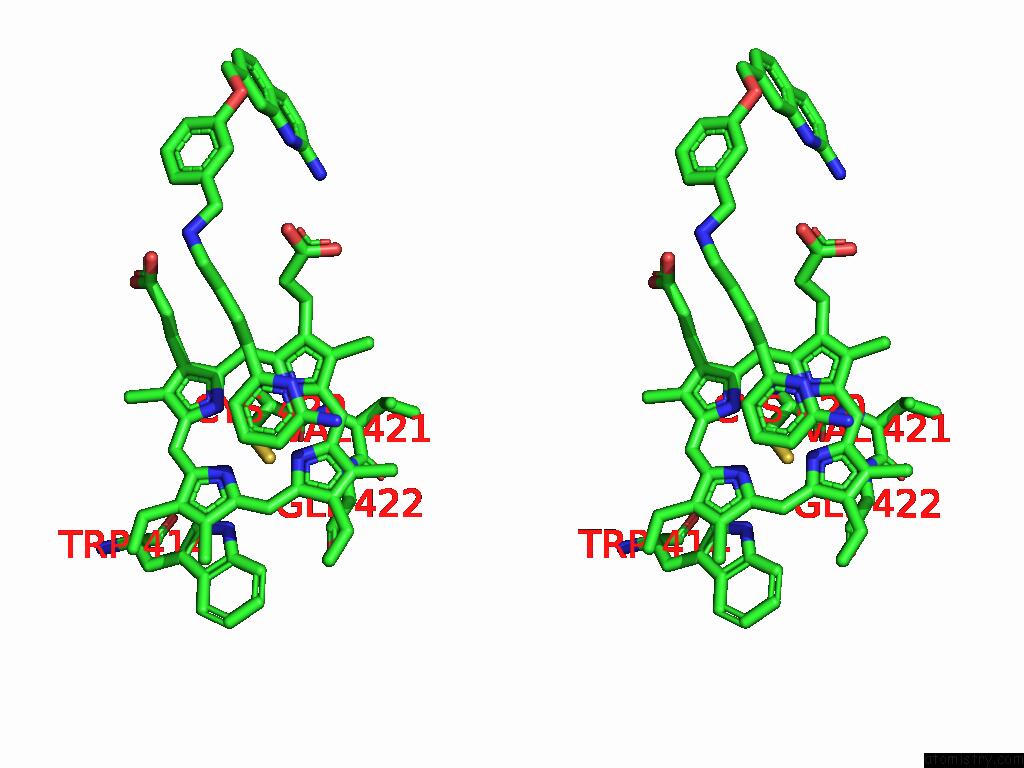

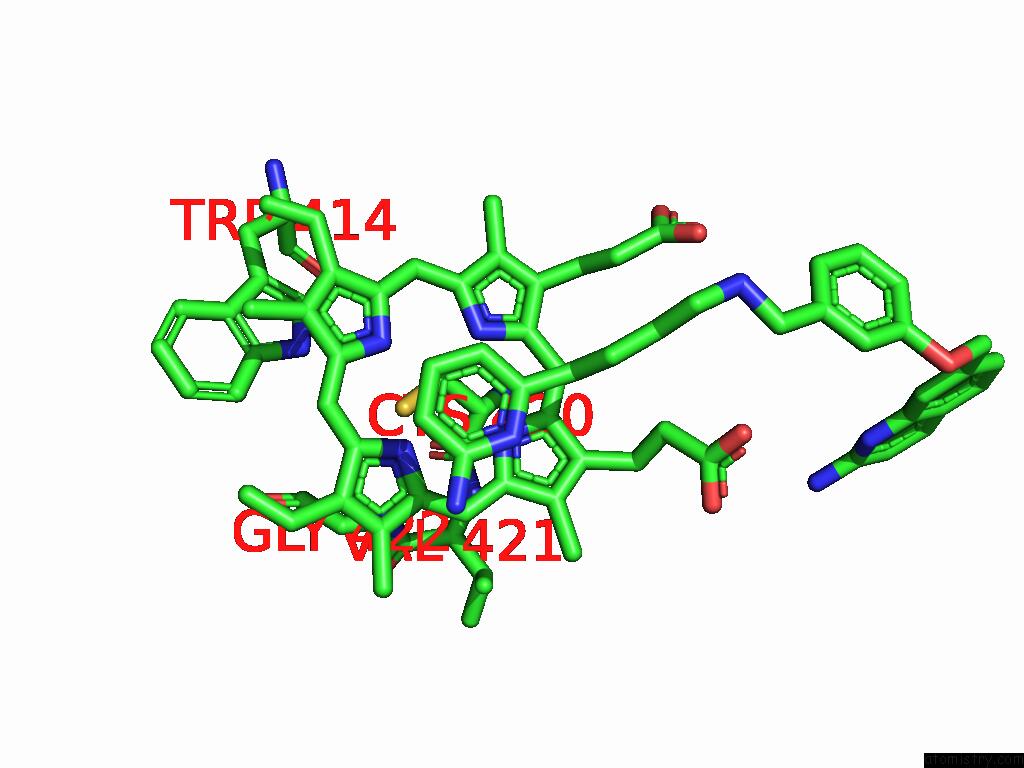

Iron binding site 1 out of 4 in the Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 1 of Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Fe801

b:31.4
occ:1.00
 FE A:HEM801 0.0 31.4 1.0
ND A:HEM801 2.0 36.5 1.0
NB A:HEM801 2.1 40.2 1.0
NC A:HEM801 2.1 37.4 1.0
NA A:HEM801 2.2 44.2 1.0
SG A:CYS420 2.4 30.5 1.0
C1D A:HEM801 3.0 43.7 1.0
C4D A:HEM801 3.1 43.9 1.0
C4B A:HEM801 3.1 42.2 1.0
C1B A:HEM801 3.1 48.5 1.0
C1C A:HEM801 3.1 30.5 1.0
C4C A:HEM801 3.1 35.8 1.0
C4A A:HEM801 3.1 48.9 1.0
C1A A:HEM801 3.2 36.9 1.0
CB A:CYS420 3.2 37.0 1.0
CHC A:HEM801 3.4 35.1 1.0
CHD A:HEM801 3.5 33.9 1.0
CHB A:HEM801 3.5 50.8 1.0
CHA A:HEM801 3.5 31.3 1.0
C05 A:V5D802 3.7 31.4 1.0
C04 A:V5D802 3.8 31.8 1.0
CA A:CYS420 4.0 38.9 1.0
C06 A:V5D802 4.1 39.8 1.0
C03 A:V5D802 4.2 38.1 1.0
C2D A:HEM801 4.2 37.4 1.0
C3D A:HEM801 4.2 41.8 1.0
C3B A:HEM801 4.3 40.5 1.0
C2B A:HEM801 4.3 47.6 1.0
C2C A:HEM801 4.4 36.1 1.0
C3C A:HEM801 4.4 42.1 1.0
NE1 A:TRP414 4.4 30.1 1.0
C3A A:HEM801 4.4 53.5 1.0
C2A A:HEM801 4.4 45.3 1.0
N32 A:V5D802 4.5 33.2 1.0
C02 A:V5D802 4.6 31.5 1.0
N A:GLY422 4.7 40.0 1.0
C A:CYS420 4.7 36.1 1.0
C07 A:V5D802 4.8 29.2 1.0
N A:VAL421 4.9 38.0 1.0

Iron binding site 2 out of 4 in 9c1y

Go back to Iron Binding Sites List in 9c1y

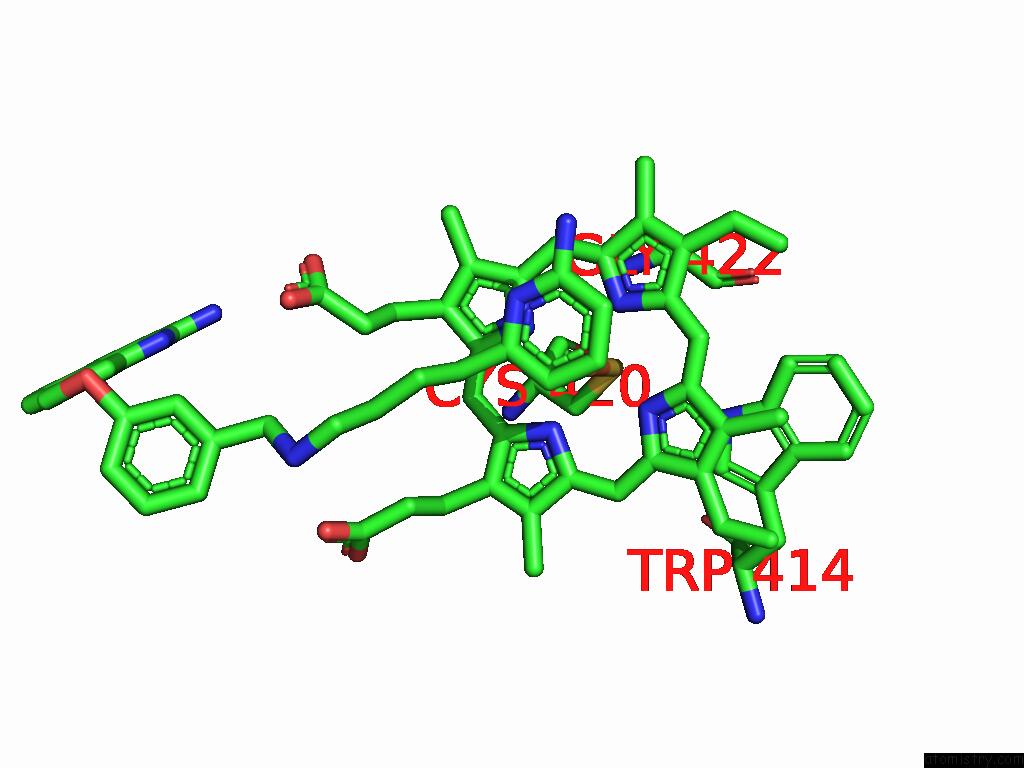

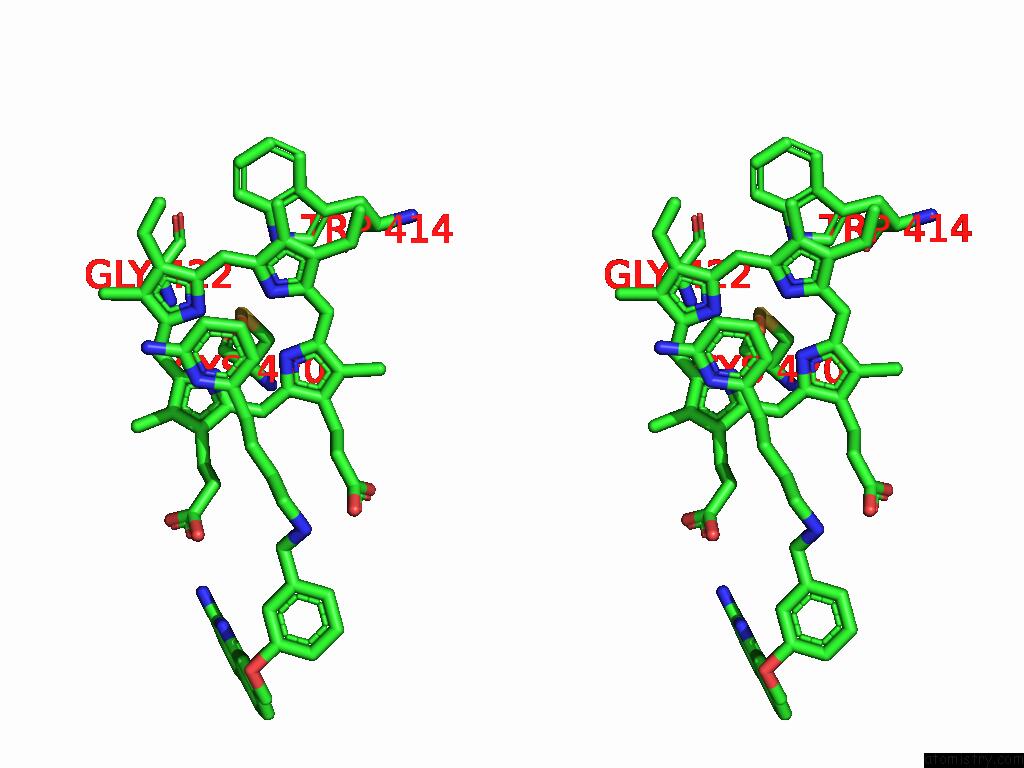

Iron binding site 2 out of 4 in the Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 2 of Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Fe802

b:35.0
occ:1.00
 FE B:HEM802 0.0 35.0 1.0
ND B:HEM802 2.0 31.2 1.0
NB B:HEM802 2.0 35.7 1.0
NC B:HEM802 2.1 28.8 1.0
NA B:HEM802 2.1 38.9 1.0
SG B:CYS420 2.3 32.2 1.0
C4B B:HEM802 3.0 35.2 1.0
C4D B:HEM802 3.0 38.9 1.0
C1C B:HEM802 3.1 30.9 1.0
C1B B:HEM802 3.1 41.7 1.0
C1D B:HEM802 3.1 44.5 1.0
C1A B:HEM802 3.1 32.0 1.0
C4A B:HEM802 3.2 30.8 1.0
C4C B:HEM802 3.2 35.0 1.0
CB B:CYS420 3.4 29.6 1.0
CHC B:HEM802 3.4 31.7 1.0
CHA B:HEM802 3.4 25.8 1.0
CHB B:HEM802 3.5 31.3 1.0
CHD B:HEM802 3.5 38.6 1.0
C05 B:V5D803 3.7 39.2 1.0
C06 B:V5D803 3.9 37.7 1.0
C04 B:V5D803 3.9 40.0 1.0
N32 B:V5D803 4.2 34.6 1.0
CA B:CYS420 4.2 29.4 1.0
C03 B:V5D803 4.2 39.2 1.0
C3B B:HEM802 4.3 37.8 1.0
C3D B:HEM802 4.3 37.1 1.0
C2B B:HEM802 4.3 38.5 1.0
C2D B:HEM802 4.3 35.8 1.0
C2C B:HEM802 4.3 30.0 1.0
C2A B:HEM802 4.4 37.8 1.0
NE1 B:TRP414 4.4 30.2 1.0
C3A B:HEM802 4.4 34.1 1.0
C02 B:V5D803 4.4 33.8 1.0
C3C B:HEM802 4.4 31.5 1.0
C07 B:V5D803 4.4 27.4 1.0
N B:GLY422 4.9 36.0 1.0
C B:CYS420 4.9 27.9 1.0

Iron binding site 3 out of 4 in 9c1y

Go back to Iron Binding Sites List in 9c1y

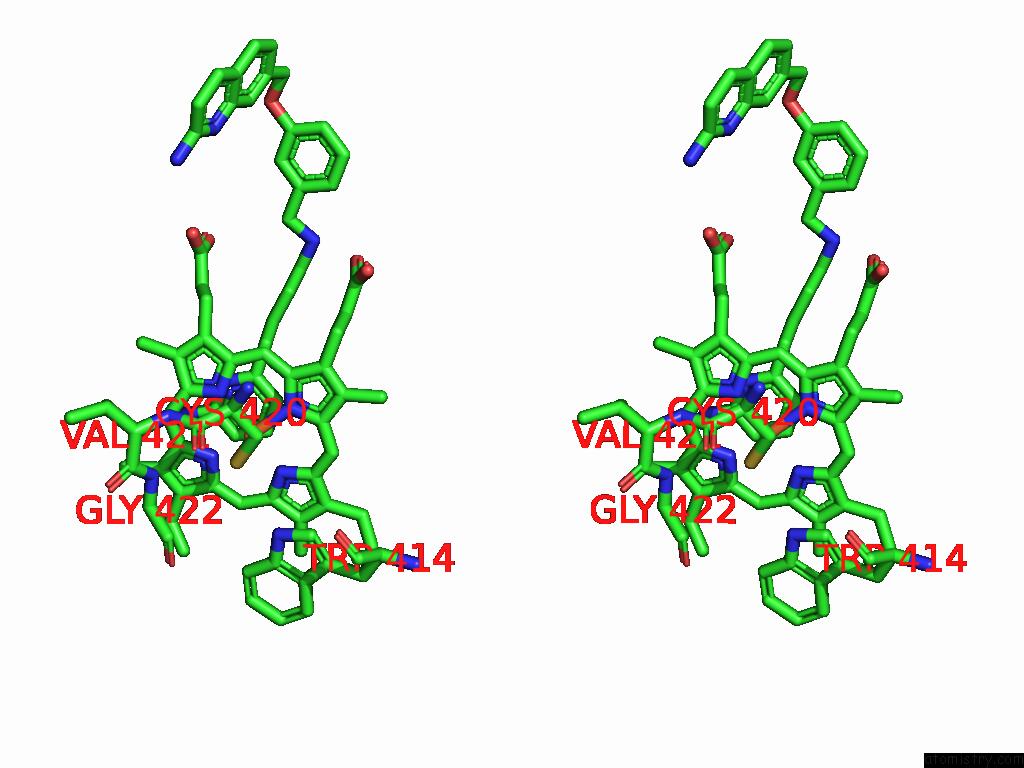

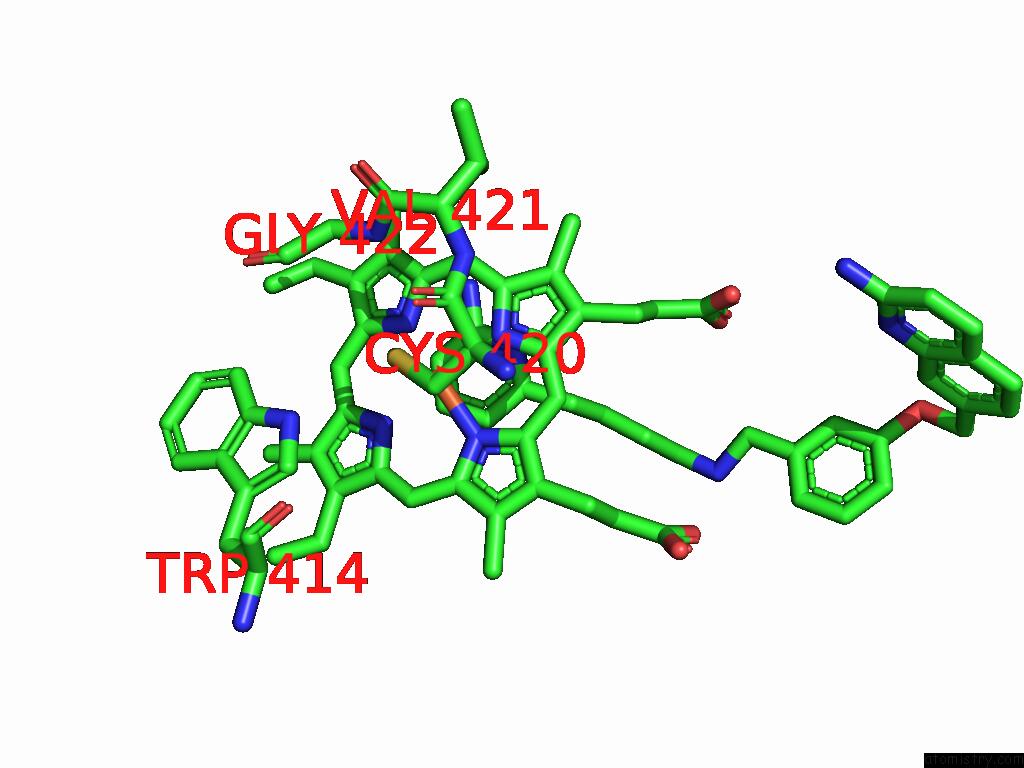

Iron binding site 3 out of 4 in the Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 3 of Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Fe801

b:33.3
occ:1.00
 FE C:HEM801 0.0 33.3 1.0
ND C:HEM801 2.0 34.0 1.0
NB C:HEM801 2.1 46.6 1.0
NC C:HEM801 2.1 38.8 1.0
NA C:HEM801 2.1 48.0 1.0
SG C:CYS420 2.4 28.1 1.0
C1D C:HEM801 3.0 40.2 1.0
C4D C:HEM801 3.0 44.9 1.0
C4B C:HEM801 3.1 39.3 1.0
C4C C:HEM801 3.1 38.4 1.0
C1B C:HEM801 3.1 51.1 1.0
C1C C:HEM801 3.1 30.4 1.0
C1A C:HEM801 3.1 36.8 1.0
C4A C:HEM801 3.2 48.4 1.0
CB C:CYS420 3.4 31.6 1.0
CHD C:HEM801 3.4 41.0 1.0
CHC C:HEM801 3.4 35.4 1.0
CHA C:HEM801 3.5 42.7 1.0
CHB C:HEM801 3.5 54.3 1.0
C05 C:V5D802 3.8 29.1 1.0
C04 C:V5D802 3.8 26.7 1.0
CA C:CYS420 4.1 35.5 1.0
C06 C:V5D802 4.1 42.9 1.0
C03 C:V5D802 4.2 32.5 1.0
C2D C:HEM801 4.2 37.0 1.0
C3D C:HEM801 4.2 44.8 1.0
C3B C:HEM801 4.3 44.0 1.0
C2B C:HEM801 4.3 42.1 1.0
C3C C:HEM801 4.3 47.7 1.0
C2C C:HEM801 4.4 39.6 1.0
C2A C:HEM801 4.4 36.6 1.0
C3A C:HEM801 4.4 50.5 1.0
NE1 C:TRP414 4.4 22.6 1.0
N32 C:V5D802 4.4 34.4 1.0
C02 C:V5D802 4.5 33.0 1.0
C07 C:V5D802 4.8 41.1 1.0
N C:GLY422 4.8 44.3 1.0
C C:CYS420 4.9 30.6 1.0
N C:VAL421 5.0 38.4 1.0

Iron binding site 4 out of 4 in 9c1y

Go back to Iron Binding Sites List in 9c1y

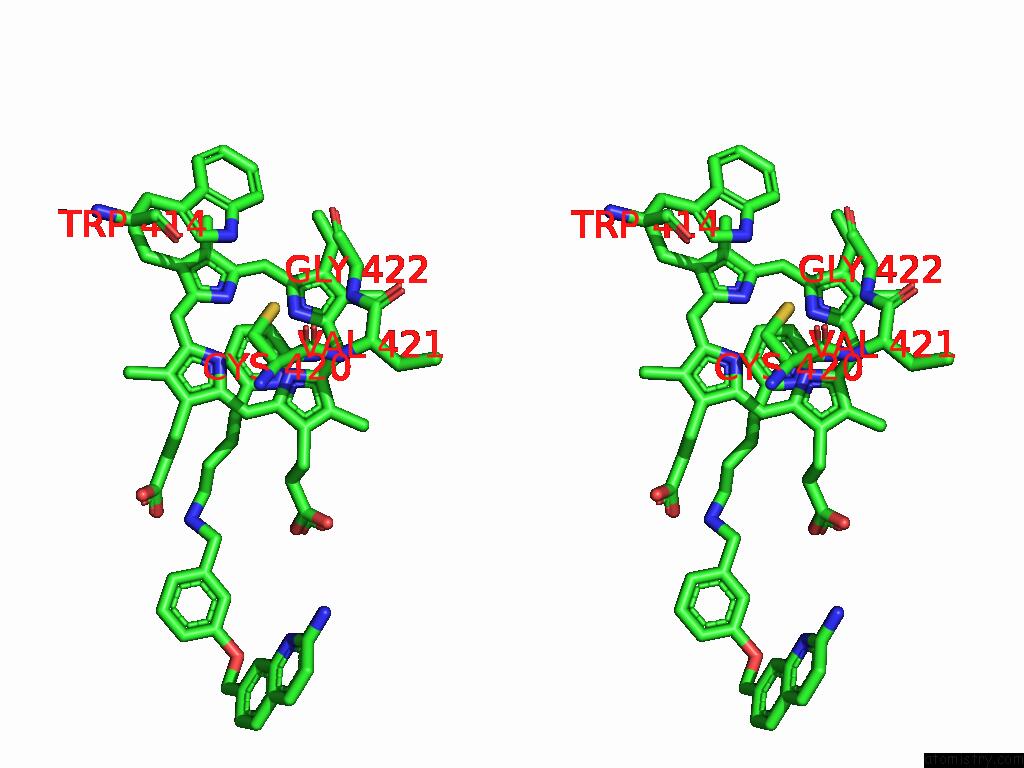

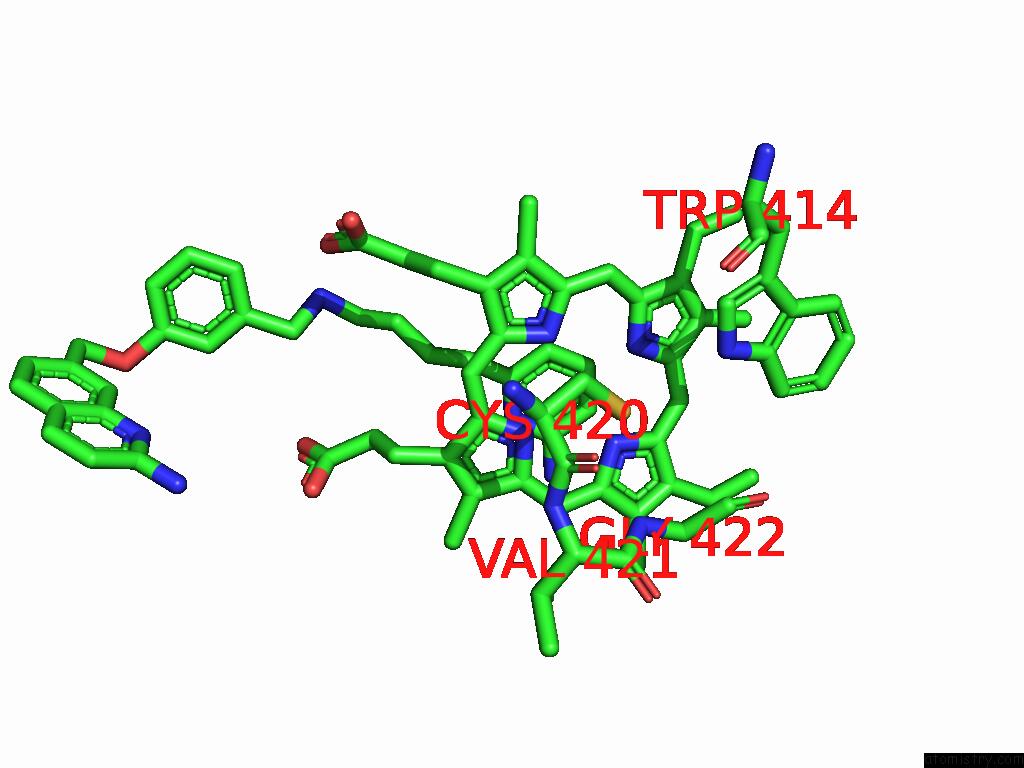

Iron binding site 4 out of 4 in the Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 4 of Structure of Human Neuronal Nitric Oxide Synthase R354A/G357D Mutant Heme Domain in Complex with 7-((3-(((4-(6-Aminopyridin-2-Yl)Butyl) Amino)Methyl)Phenoxy)Methyl)Quinolin-2-Amine within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Fe801

b:39.8
occ:1.00
 FE D:HEM801 0.0 39.8 1.0
ND D:HEM801 2.0 37.9 1.0
NB D:HEM801 2.1 46.6 1.0
NC D:HEM801 2.1 38.9 1.0
NA D:HEM801 2.1 46.6 1.0
SG D:CYS420 2.4 27.6 1.0
C4D D:HEM801 3.1 42.3 1.0
C4B D:HEM801 3.1 29.8 1.0
C1C D:HEM801 3.1 21.7 1.0
C1D D:HEM801 3.1 48.9 1.0
C1B D:HEM801 3.1 48.6 1.0
C1A D:HEM801 3.1 38.3 1.0
C4C D:HEM801 3.1 34.1 1.0
C4A D:HEM801 3.1 43.2 1.0
CB D:CYS420 3.4 34.3 1.0
CHC D:HEM801 3.4 26.9 1.0
CHA D:HEM801 3.4 27.5 1.0
CHB D:HEM801 3.5 50.4 1.0
CHD D:HEM801 3.5 30.6 1.0
C05 D:V5D802 3.6 40.0 1.0
C04 D:V5D802 3.8 43.2 1.0
C06 D:V5D802 3.9 44.3 1.0
CA D:CYS420 4.1 32.2 1.0
C03 D:V5D802 4.3 41.0 1.0
C3D D:HEM801 4.3 42.3 1.0
C3B D:HEM801 4.3 33.9 1.0
C2B D:HEM801 4.3 41.8 1.0
C2D D:HEM801 4.3 41.1 1.0
C2C D:HEM801 4.3 34.5 1.0
C3C D:HEM801 4.3 41.5 1.0
C2A D:HEM801 4.3 43.8 1.0
N32 D:V5D802 4.4 35.1 1.0
C3A D:HEM801 4.4 40.8 1.0
NE1 D:TRP414 4.4 30.2 1.0
C07 D:V5D802 4.5 46.1 1.0
C02 D:V5D802 4.5 36.7 1.0
N D:GLY422 4.8 39.0 1.0
C D:CYS420 4.9 30.2 1.0
N D:VAL421 5.0 35.5 1.0

Reference:

P.M.Weerawarna, A.D.Rathnayaka, H.Li, M.Lewis, T.L.Poulos, R.B.Silverman. Discovery of Tetrahydrobiopterin Displacing Potent Neuronal Nitric Oxide Synthase Inhibitor with Unprecedented Binding Mode: Synthesis, Biochemical Evaluation, and Structural Characterization To Be Published.
