Iron in PDB 9erc: Hydrogenase-2 Ni-Li State

Enzymatic activity of Hydrogenase-2 Ni-Li State

All present enzymatic activity of Hydrogenase-2 Ni-Li State:
1.12.99.6;

Protein crystallography data

The structure of Hydrogenase-2 Ni-Li State, PDB code: 9erc was solved by K.L.Wong, S.B.Carr, P.A.Ash, K.A.Vincent, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 86.07 / 1.31
Space group P 21 21 21
Cell size a, b, c (Å), α, β, γ (°) 99.877, 99.974, 168.071, 90, 90, 90
R / Rfree (%) 17.4 / 19.3

Other elements in 9erc:

The structure of Hydrogenase-2 Ni-Li State also contains other interesting chemical elements:

Magnesium (Mg) 8 atoms
Nickel (Ni) 2 atoms

Iron Binding Sites:

Pages:

>>> Page 1 <<< Page 2, Binding sites: 11 - 20; Page 3, Binding sites: 21 - 24;

Binding sites:

The binding sites of Iron atom in the Hydrogenase-2 Ni-Li State (pdb code 9erc). This binding sites where shown within 5.0 Angstroms radius around Iron atom.
In total 24 binding sites of Iron where determined in the Hydrogenase-2 Ni-Li State, PDB code: 9erc:
Jump to Iron binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10;

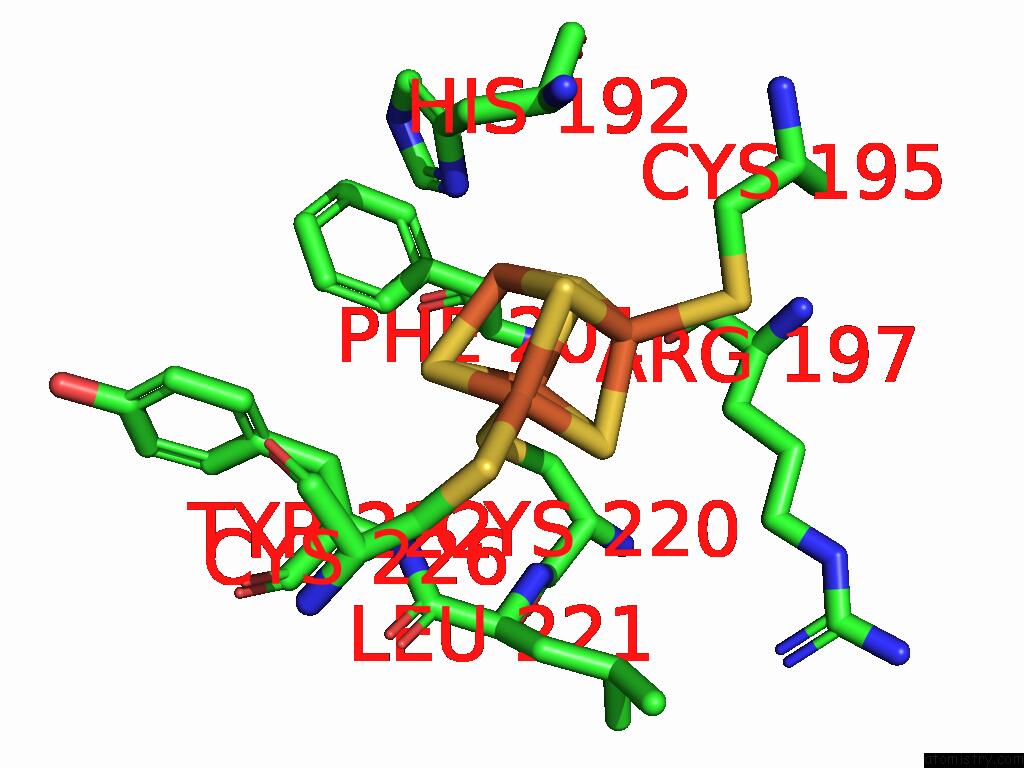

Iron binding site 1 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc

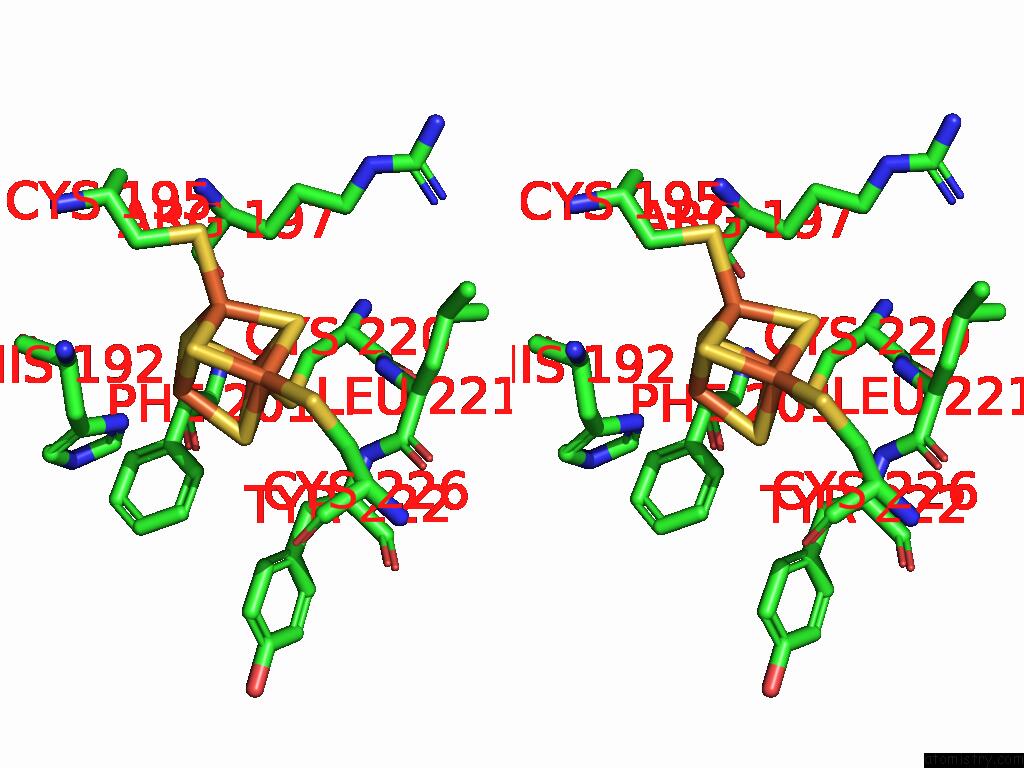

Iron binding site 1 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 1 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe301

b:13.9
occ:1.00
 FE1 S:SF4301 0.0 13.9 1.0
SG S:CYS220 2.3 14.2 1.0
S2 S:SF4301 2.3 12.8 1.0
S3 S:SF4301 2.3 12.9 1.0
S4 S:SF4301 2.3 13.3 1.0
FE4 S:SF4301 2.7 12.8 1.0
FE3 S:SF4301 2.7 14.3 1.0
FE2 S:SF4301 2.8 13.5 1.0
CB S:CYS220 3.4 14.8 1.0
N S:LEU221 3.9 13.0 1.0
CA S:CYS220 3.9 13.6 1.0
S1 S:SF4301 4.0 13.0 1.0
N S:TYR222 4.1 14.6 1.0
C S:CYS220 4.3 14.3 1.0
CB S:PHE201 4.3 14.4 1.0
CD2 S:PHE201 4.4 17.1 1.0
ND1 S:HIS192 4.5 14.2 1.0
CB S:ARG197 4.5 14.4 1.0
CB S:TYR222 4.5 15.0 1.0
O S:ARG197 4.7 14.5 1.0
CA S:TYR222 4.7 14.2 1.0
CG S:PHE201 4.8 15.9 1.0
C S:LEU221 4.8 14.7 1.0
C S:ARG197 4.8 13.7 1.0
CE1 S:HIS192 4.8 15.0 1.0
CA S:LEU221 4.8 13.0 1.0
SG S:CYS195 4.9 11.8 1.0
SG S:CYS226 4.9 12.3 1.0

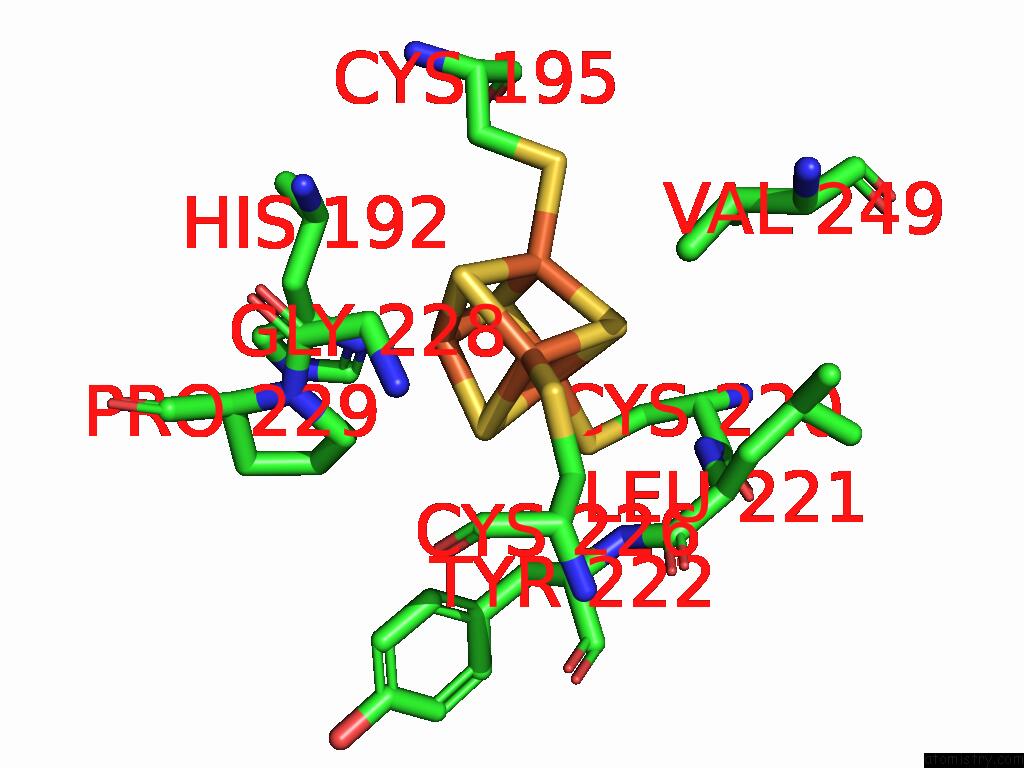

Iron binding site 2 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc

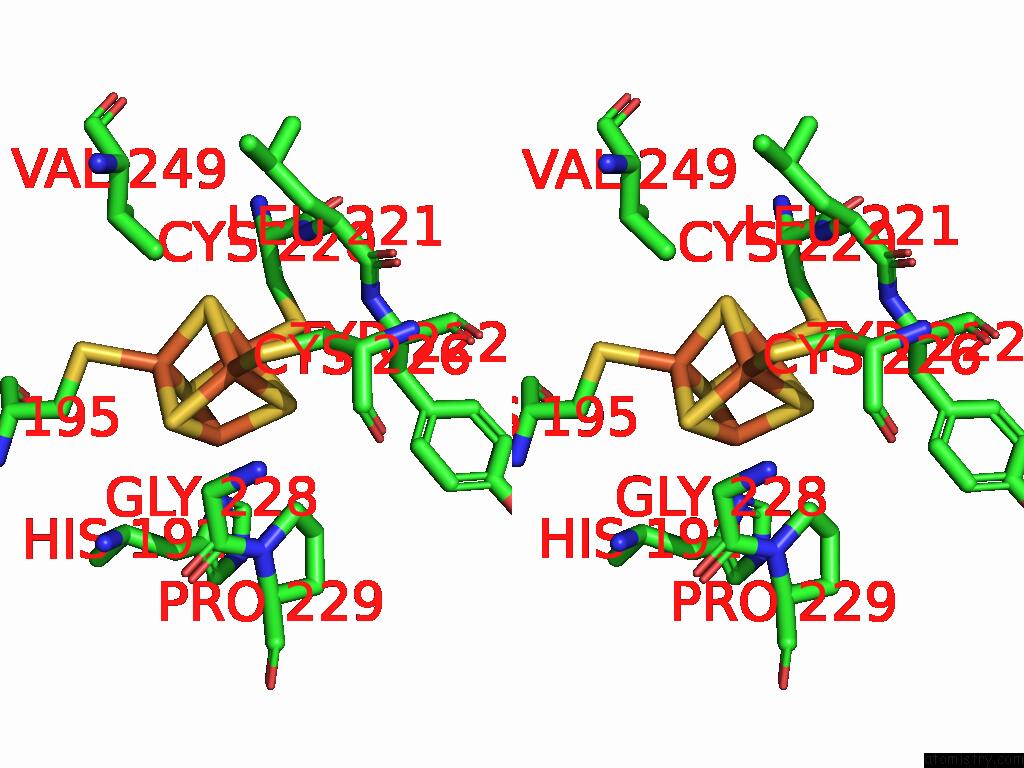

Iron binding site 2 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 2 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe301

b:13.5
occ:1.00
 FE2 S:SF4301 0.0 13.5 1.0
S1 S:SF4301 2.3 13.0 1.0
S3 S:SF4301 2.3 12.9 1.0
S4 S:SF4301 2.3 13.3 1.0
SG S:CYS226 2.3 12.3 1.0
FE4 S:SF4301 2.7 12.8 1.0
FE3 S:SF4301 2.7 14.3 1.0
FE1 S:SF4301 2.8 13.9 1.0
CB S:CYS226 3.2 13.4 1.0
S2 S:SF4301 3.9 12.8 1.0
CD S:PRO229 4.4 14.5 1.0
N S:GLY228 4.5 12.6 1.0
CA S:GLY228 4.5 13.5 1.0
CA S:CYS226 4.6 12.9 1.0
CG2 S:VAL249 4.7 13.2 1.0
SG S:CYS195 4.7 11.8 1.0
ND1 S:HIS192 4.7 14.2 1.0
SG S:CYS220 4.7 14.2 1.0
N S:TYR222 4.8 14.6 1.0
C S:CYS226 4.8 13.0 1.0
N S:LEU221 4.9 13.0 1.0

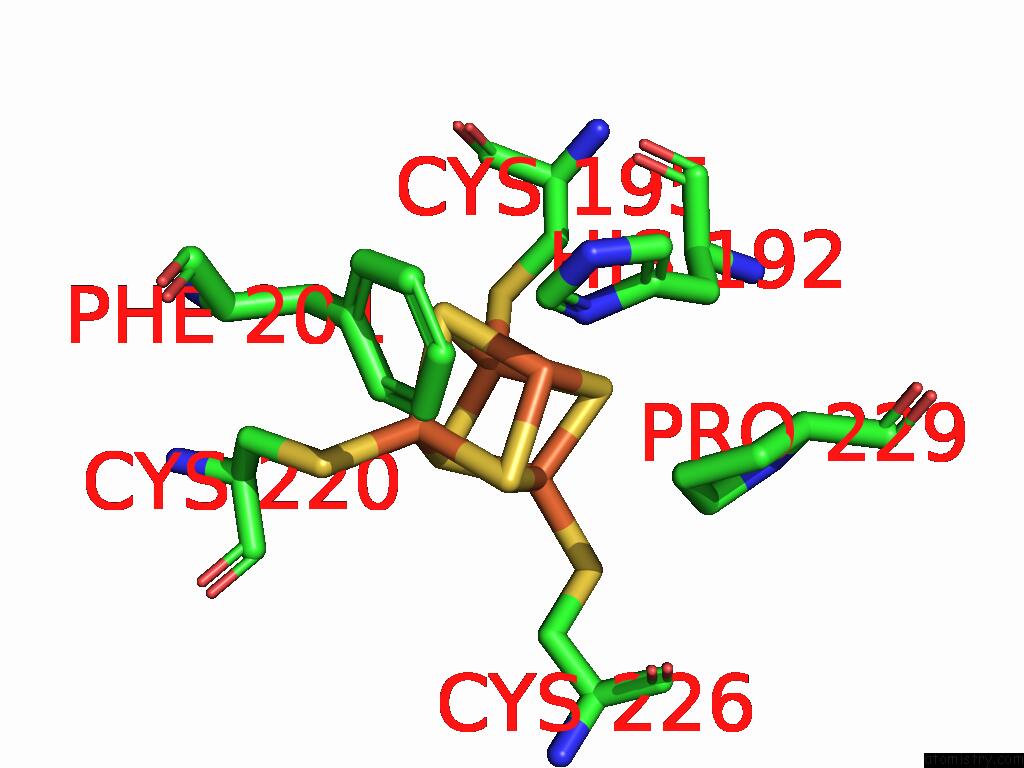

Iron binding site 3 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc

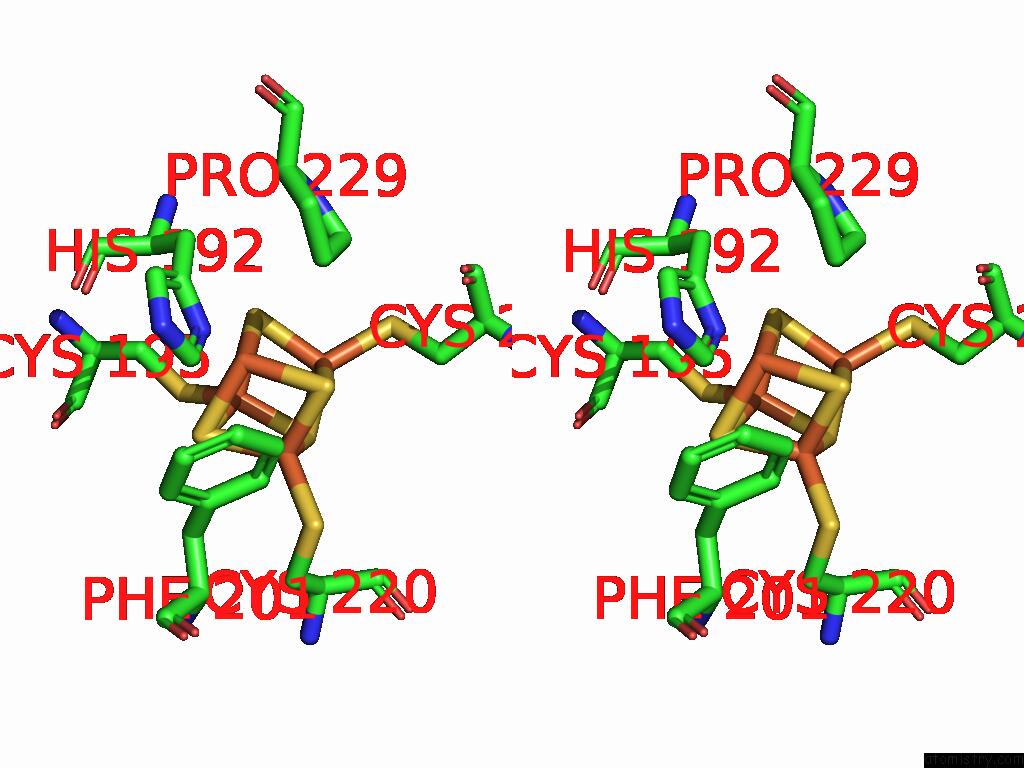

Iron binding site 3 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 3 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe301

b:14.3
occ:1.00
 FE3 S:SF4301 0.0 14.3 1.0
ND1 S:HIS192 2.1 14.2 1.0
S1 S:SF4301 2.3 13.0 1.0
S4 S:SF4301 2.3 13.3 1.0
S2 S:SF4301 2.3 12.8 1.0
FE4 S:SF4301 2.7 12.8 1.0
FE2 S:SF4301 2.7 13.5 1.0
FE1 S:SF4301 2.7 13.9 1.0
CE1 S:HIS192 3.0 15.0 1.0
CG S:HIS192 3.1 14.3 1.0
CB S:HIS192 3.6 13.4 1.0
S3 S:SF4301 3.9 12.9 1.0
CA S:HIS192 3.9 13.2 1.0
NE2 S:HIS192 4.2 14.7 1.0
CG S:PRO229 4.2 15.1 1.0
CD S:PRO229 4.2 14.5 1.0
CD2 S:HIS192 4.2 16.9 1.0
CB S:CYS195 4.6 12.8 1.0
SG S:CYS195 4.6 11.8 1.0
SG S:CYS220 4.7 14.2 1.0
CD2 S:PHE201 4.7 17.1 1.0
O S:HIS192 4.7 14.6 1.0
N S:PRO229 4.8 13.8 1.0
SG S:CYS226 4.8 12.3 1.0
C S:HIS192 4.9 13.9 1.0
N S:HIS192 4.9 12.6 1.0

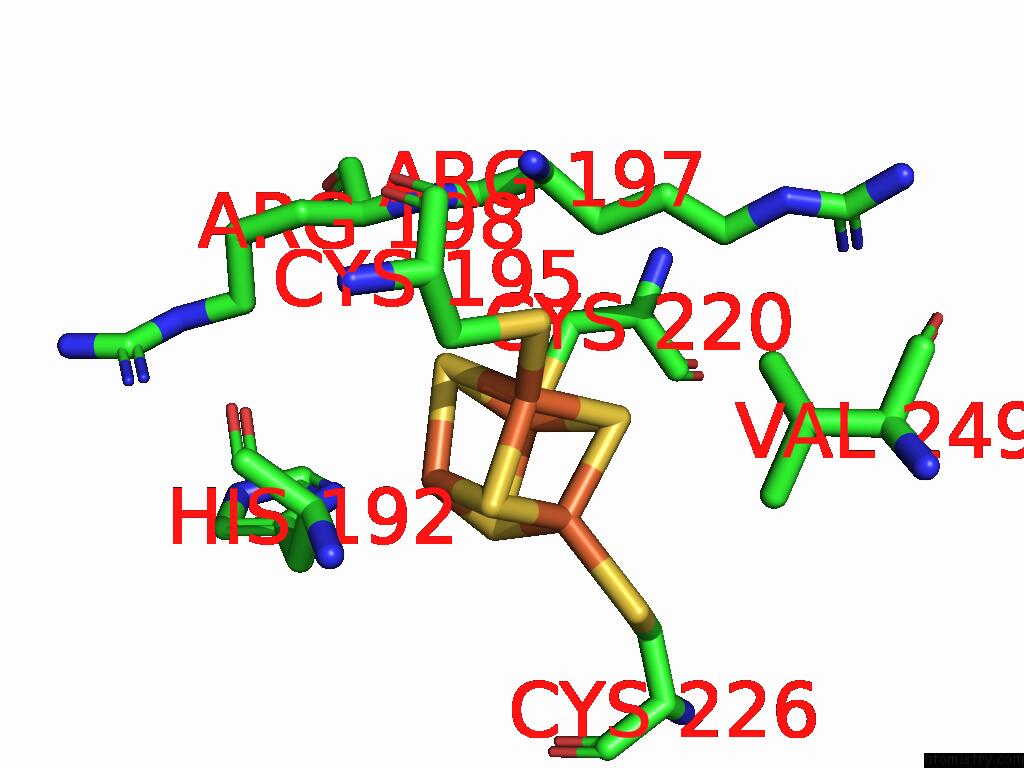

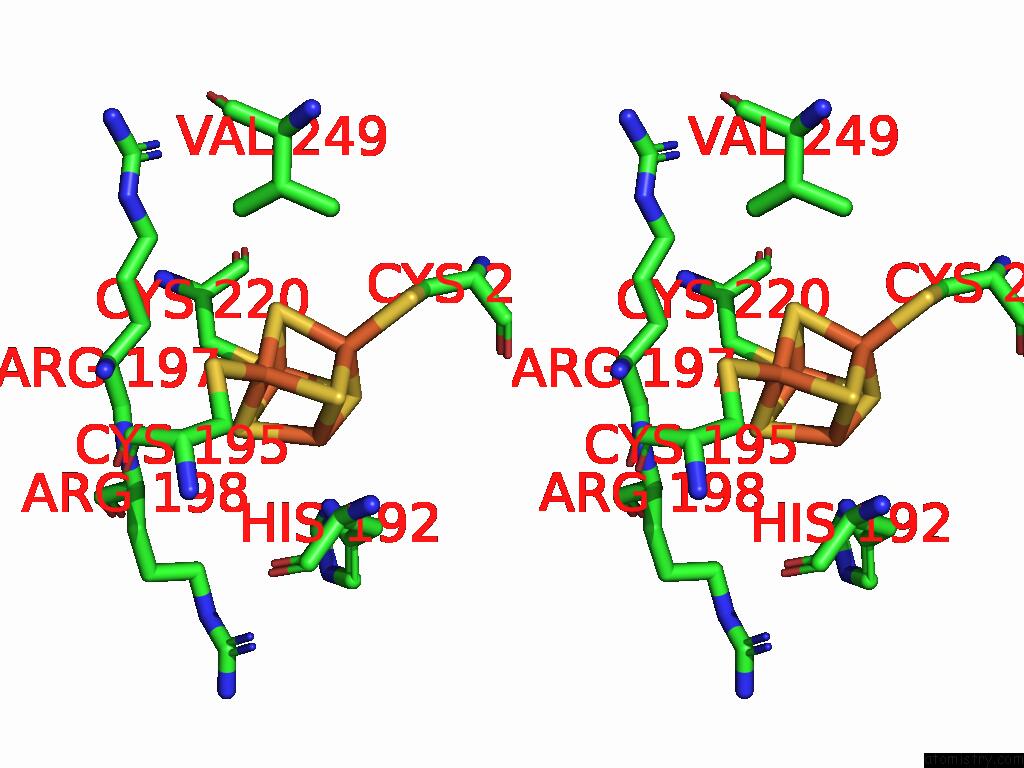

Iron binding site 4 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc
Iron binding site 4 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 4 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe301

b:12.8
occ:1.00
 FE4 S:SF4301 0.0 12.8 1.0
S3 S:SF4301 2.3 12.9 1.0
SG S:CYS195 2.3 11.8 1.0
S2 S:SF4301 2.3 12.8 1.0
S1 S:SF4301 2.3 13.0 1.0
FE2 S:SF4301 2.7 13.5 1.0
FE3 S:SF4301 2.7 14.3 1.0
FE1 S:SF4301 2.7 13.9 1.0
CB S:CYS195 3.2 12.8 1.0
S4 S:SF4301 3.9 13.3 1.0
CB S:ARG197 4.0 14.4 1.0
ND1 S:HIS192 4.5 14.2 1.0
N S:ARG197 4.6 13.9 1.0
C S:ARG197 4.6 13.7 1.0
CA S:CYS195 4.6 12.3 1.0
CA S:ARG197 4.6 13.9 1.0
N S:ARG198 4.6 13.3 1.0
SG S:CYS226 4.8 12.3 1.0
CG1 S:VAL249 4.9 13.4 1.0
CG S:ARG197 4.9 15.2 1.0
SG S:CYS220 4.9 14.2 1.0
C S:CYS195 4.9 13.1 1.0

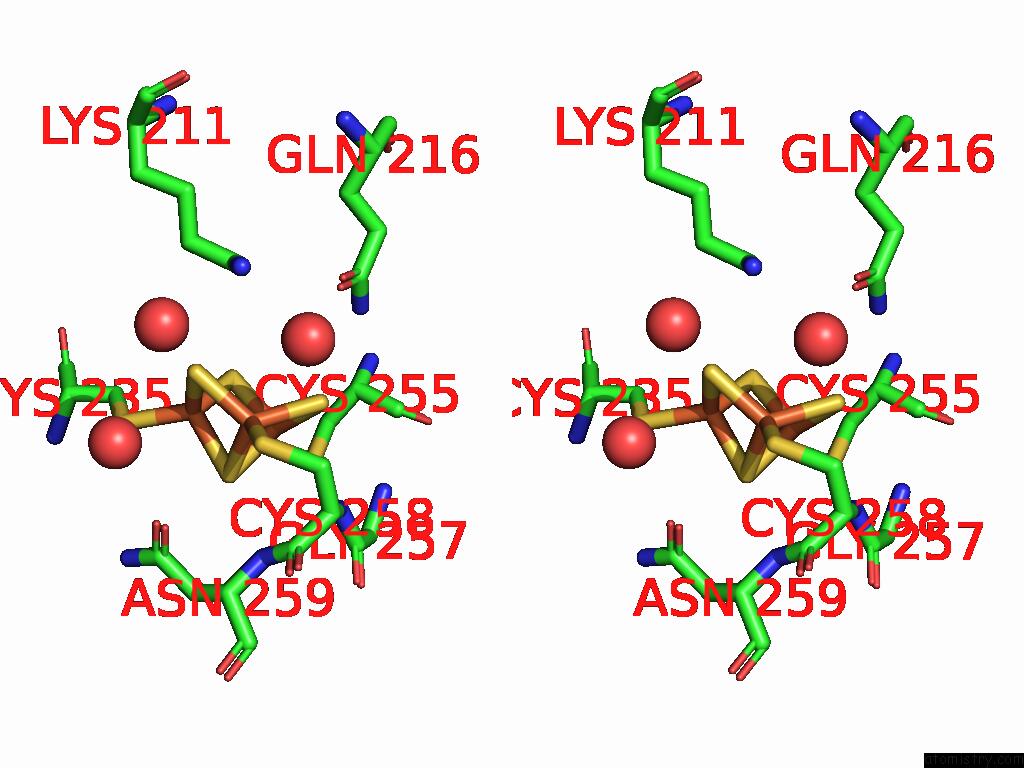

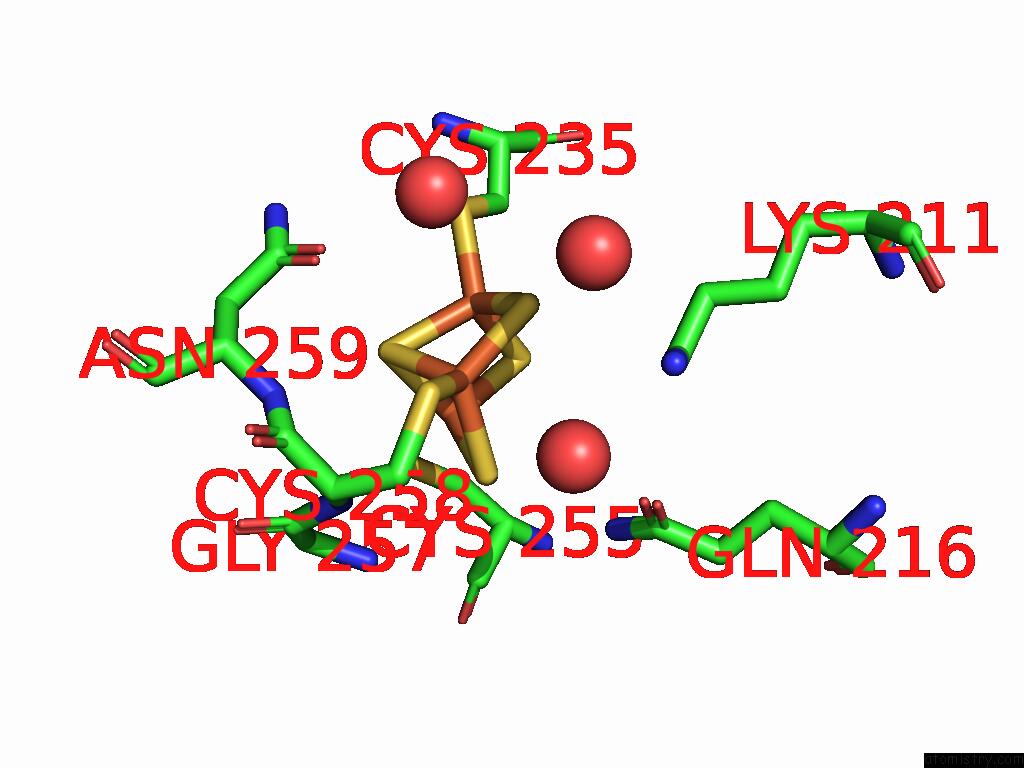

Iron binding site 5 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc
Iron binding site 5 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 5 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe302

b:11.4
occ:1.00
 FE1 S:F3S302 0.0 11.4 1.0
S1 S:F3S302 2.2 10.9 1.0
S3 S:F3S302 2.3 11.7 1.0
S2 S:F3S302 2.3 11.5 1.0
SG S:CYS258 2.3 10.8 1.0
FE3 S:F3S302 2.6 11.7 1.0
FE4 S:F3S302 2.7 11.6 1.0
CB S:CYS258 3.4 11.1 1.0
O L:HOH864 3.6 10.2 1.0
N S:CYS258 3.7 11.2 1.0
S4 S:F3S302 3.8 11.5 1.0
CA S:CYS258 4.0 11.0 1.0
N S:ASN259 4.2 10.2 1.0
OD1 S:ASN259 4.2 12.0 1.0
O S:HOH499 4.2 11.5 1.0
C S:CYS258 4.4 11.0 1.0
SG S:CYS235 4.7 12.6 1.0
C S:GLY257 4.8 11.7 1.0
CG S:ASN259 4.8 12.4 1.0
O S:HOH415 4.9 12.3 1.0
CE L:LYS211 4.9 11.5 1.0
SG S:CYS255 4.9 11.7 1.0
N S:GLY257 5.0 10.8 1.0
OE1 L:GLN216 5.0 12.3 1.0

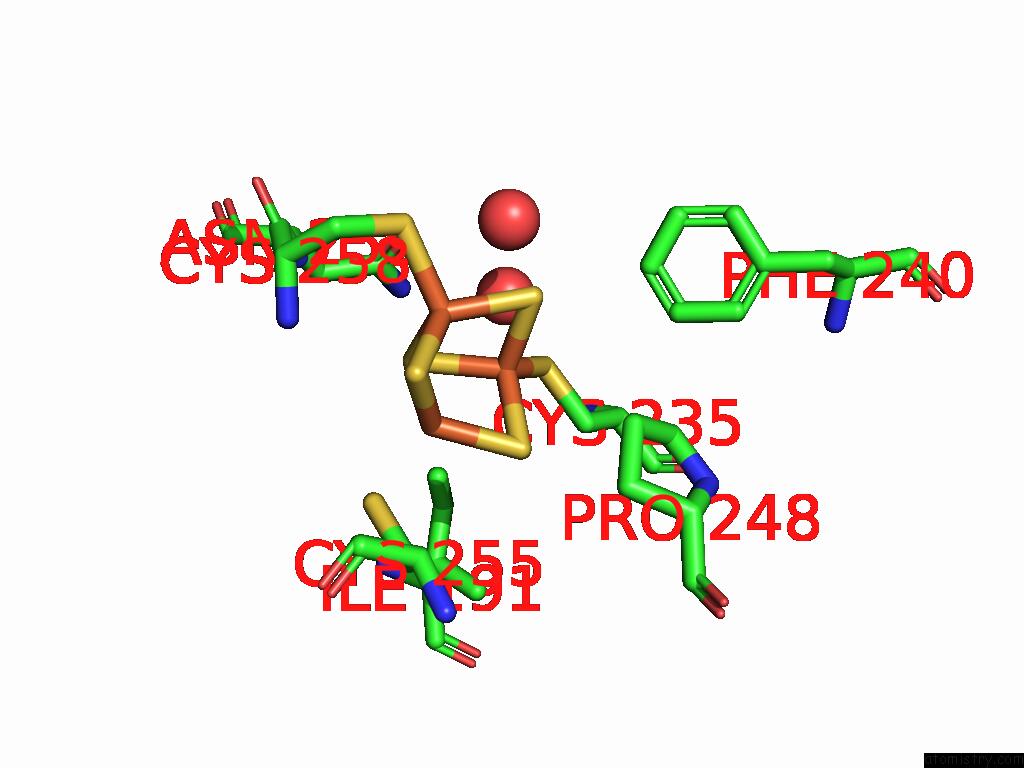

Iron binding site 6 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc

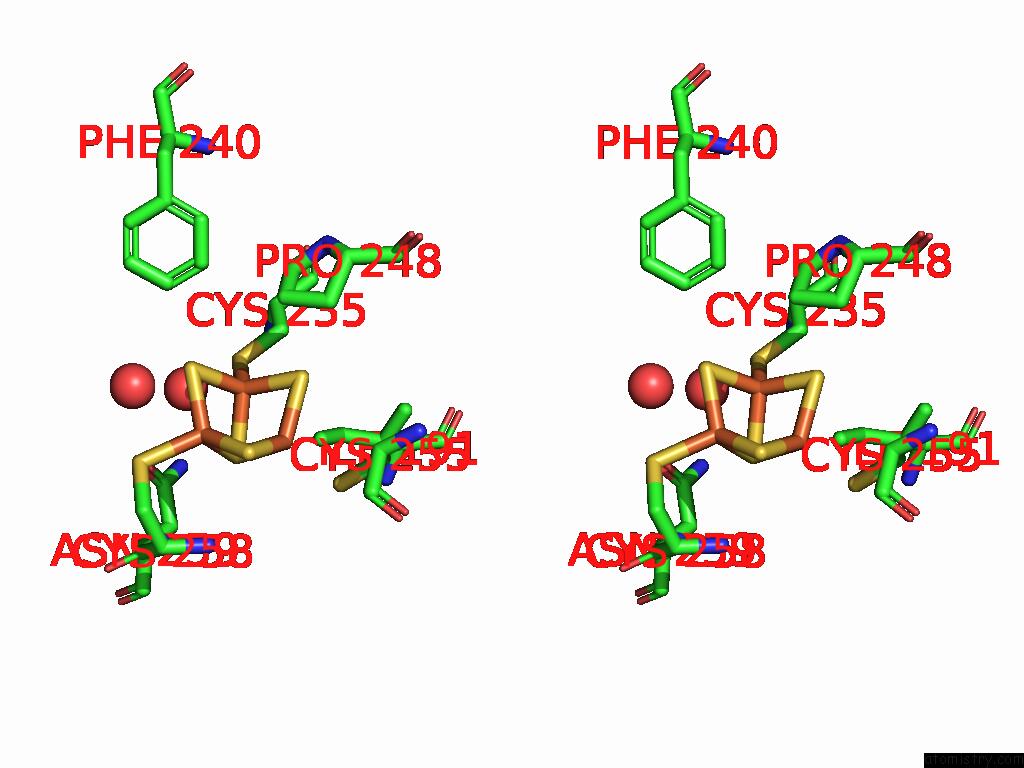

Iron binding site 6 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 6 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe302

b:11.7
occ:1.00
 FE3 S:F3S302 0.0 11.7 1.0
S4 S:F3S302 2.2 11.5 1.0
S1 S:F3S302 2.2 10.9 1.0
S3 S:F3S302 2.3 11.7 1.0
SG S:CYS235 2.3 12.6 1.0
FE1 S:F3S302 2.6 11.4 1.0
FE4 S:F3S302 2.7 11.6 1.0
CB S:CYS235 3.3 11.9 1.0
O S:HOH499 4.0 11.5 1.0
S2 S:F3S302 4.0 11.5 1.0
CD1 S:ILE191 4.1 12.0 1.0
CZ S:PHE240 4.5 12.3 1.0
CE1 S:PHE240 4.5 11.8 1.0
OD1 S:ASN259 4.6 12.0 1.0
SG S:CYS255 4.7 11.7 1.0
CA S:CYS235 4.7 11.2 1.0
SG S:CYS258 4.7 10.8 1.0
O S:HOH546 4.9 12.2 1.0
CD S:PRO248 4.9 11.5 1.0
CG S:ASN259 4.9 12.4 1.0
CG S:PRO248 5.0 11.6 1.0
ND2 S:ASN259 5.0 12.4 1.0

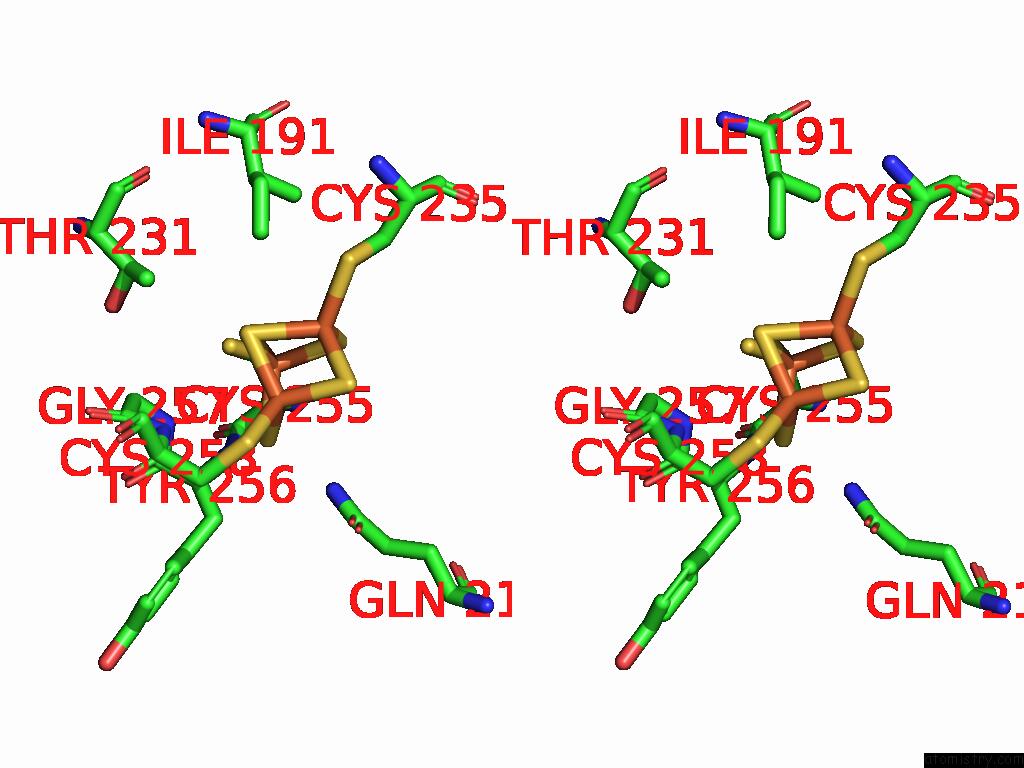

Iron binding site 7 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc

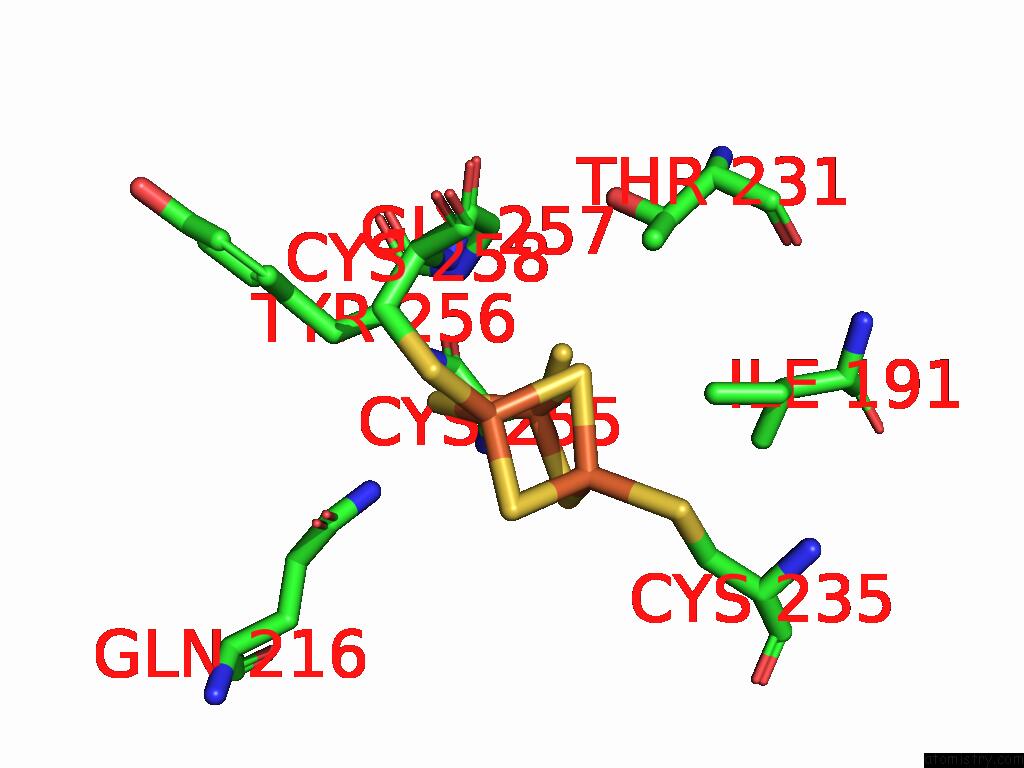

Iron binding site 7 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 7 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe302

b:11.6
occ:1.00
 FE4 S:F3S302 0.0 11.6 1.0
S4 S:F3S302 2.2 11.5 1.0
S3 S:F3S302 2.3 11.7 1.0
S2 S:F3S302 2.3 11.5 1.0
SG S:CYS255 2.4 11.7 1.0
FE3 S:F3S302 2.7 11.7 1.0
FE1 S:F3S302 2.7 11.4 1.0
CB S:CYS255 3.3 11.6 1.0
CA S:CYS255 3.7 11.6 1.0
N S:TYR256 3.9 10.5 1.0
S1 S:F3S302 3.9 10.9 1.0
N S:GLY257 3.9 10.8 1.0
CD1 S:ILE191 4.2 12.0 1.0
C S:CYS255 4.2 11.3 1.0
N S:CYS258 4.3 11.2 1.0
CA S:GLY257 4.5 11.1 1.0
NE2 L:GLN216 4.6 12.1 1.0
SG S:CYS235 4.7 12.6 1.0
CG2 S:THR231 4.8 12.6 1.0
SG S:CYS258 4.8 10.8 1.0
C S:TYR256 4.9 12.0 1.0
C S:GLY257 4.9 11.7 1.0
CA S:TYR256 4.9 11.4 1.0

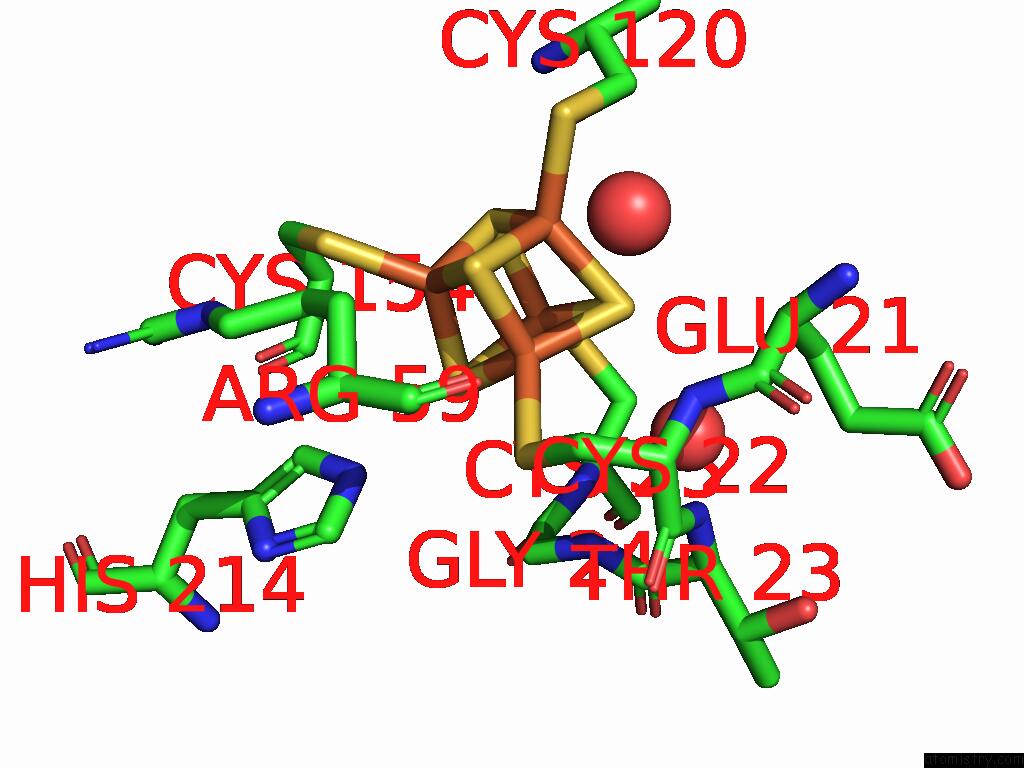

Iron binding site 8 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc

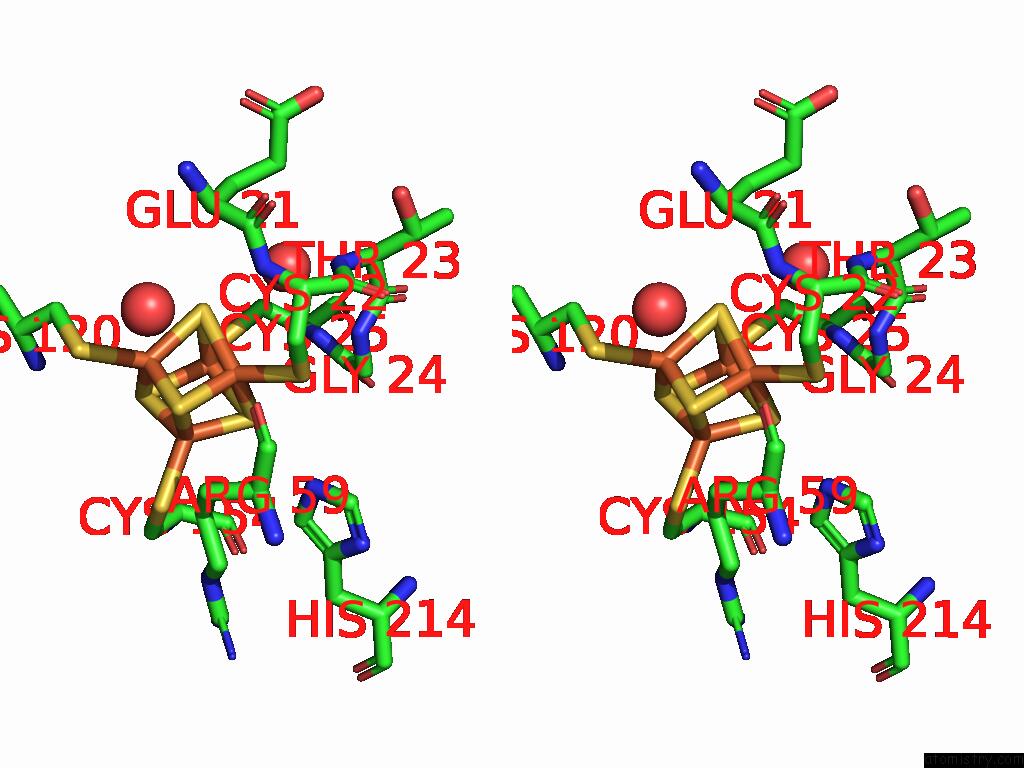

Iron binding site 8 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 8 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe303

b:11.4
occ:1.00
 FE1 S:SF4303 0.0 11.4 1.0
S4 S:SF4303 2.2 11.5 1.0
S3 S:SF4303 2.3 11.7 1.0
SG S:CYS22 2.3 11.9 1.0
S2 S:SF4303 2.3 10.2 1.0
FE3 S:SF4303 2.6 11.0 1.0
FE2 S:SF4303 2.7 11.5 1.0
FE4 S:SF4303 2.7 12.0 1.0
CB S:CYS22 3.4 12.2 1.0
N S:CYS22 3.7 11.8 1.0
S1 S:SF4303 3.8 11.7 1.0
CA S:CYS22 4.0 11.4 1.0
NE2 L:HIS214 4.2 11.4 1.0
N S:GLY24 4.2 11.7 1.0
O S:HOH412 4.3 11.2 1.0
O S:HOH536 4.5 13.6 1.0
CA S:GLY24 4.5 11.1 1.0
C S:CYS22 4.6 10.9 1.0
N S:THR23 4.6 10.9 1.0
SG S:CYS154 4.6 11.8 1.0
SG S:CYS120 4.8 11.3 1.0
N S:CYS25 4.8 11.3 1.0
CD2 L:HIS214 4.8 12.0 1.0
SG S:CYS25 4.9 12.3 1.0
CG L:ARG59 4.9 11.2 1.0
C S:GLU21 4.9 13.4 1.0

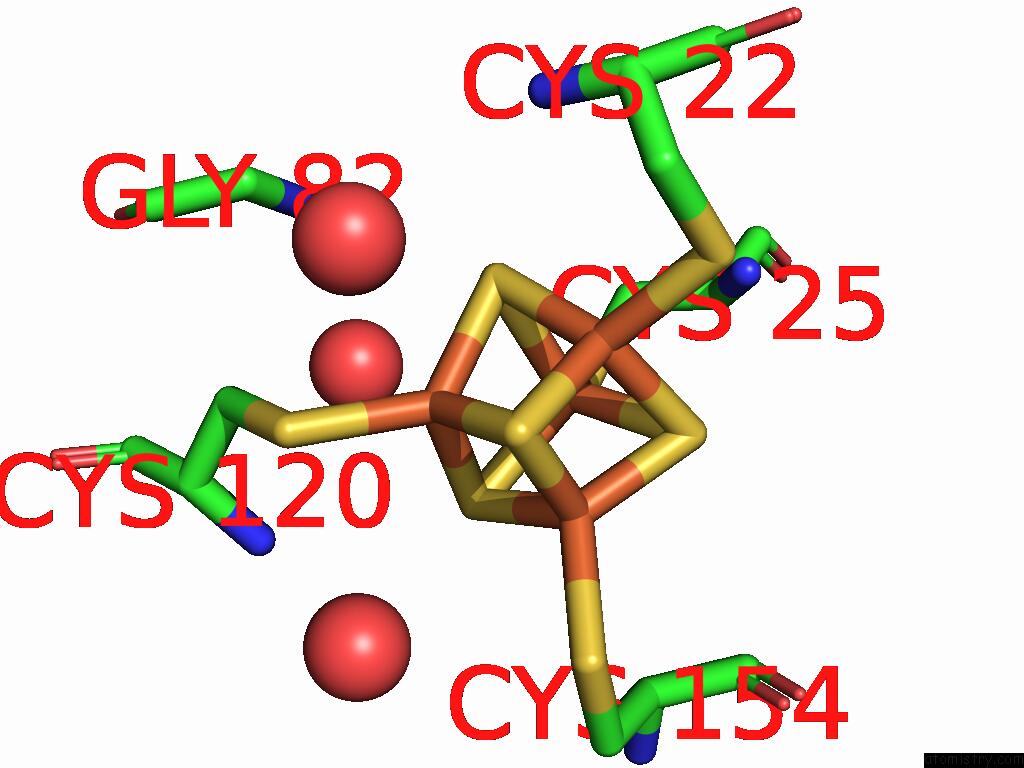

Iron binding site 9 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc

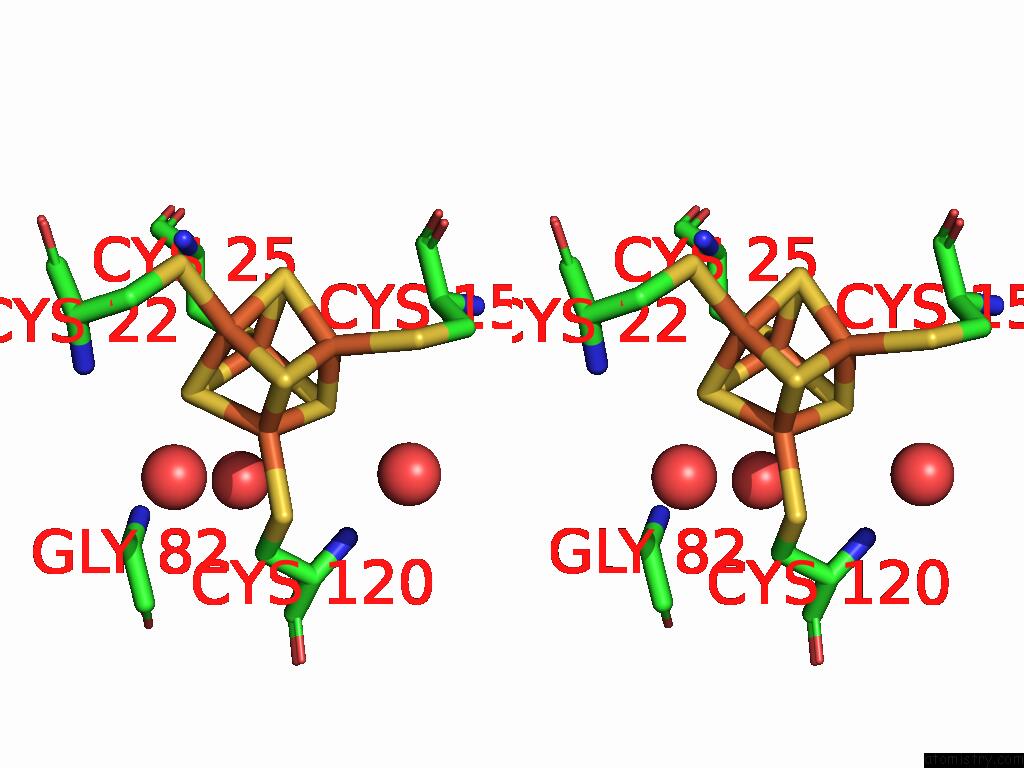

Iron binding site 9 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 9 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe303

b:11.5
occ:1.00
 FE2 S:SF4303 0.0 11.5 1.0
S4 S:SF4303 2.3 11.5 1.0
S3 S:SF4303 2.3 11.7 1.0
SG S:CYS120 2.3 11.3 1.0
S1 S:SF4303 2.3 11.7 1.0
FE3 S:SF4303 2.6 11.0 1.0
FE1 S:SF4303 2.7 11.4 1.0
FE4 S:SF4303 2.8 12.0 1.0
CB S:CYS120 3.2 10.7 1.0
O S:HOH549 3.8 12.1 1.0
O S:HOH453 3.9 11.3 1.0
O S:HOH536 3.9 13.6 1.0
S2 S:SF4303 3.9 10.2 1.0
N S:CYS120 4.0 11.7 1.0
CA S:CYS120 4.2 11.4 1.0
SG S:CYS154 4.4 11.8 1.0
SG S:CYS25 4.9 12.3 1.0
SG S:CYS22 4.9 11.9 1.0
CA S:GLY82 5.0 12.0 1.0
N S:CYS22 5.0 11.8 1.0

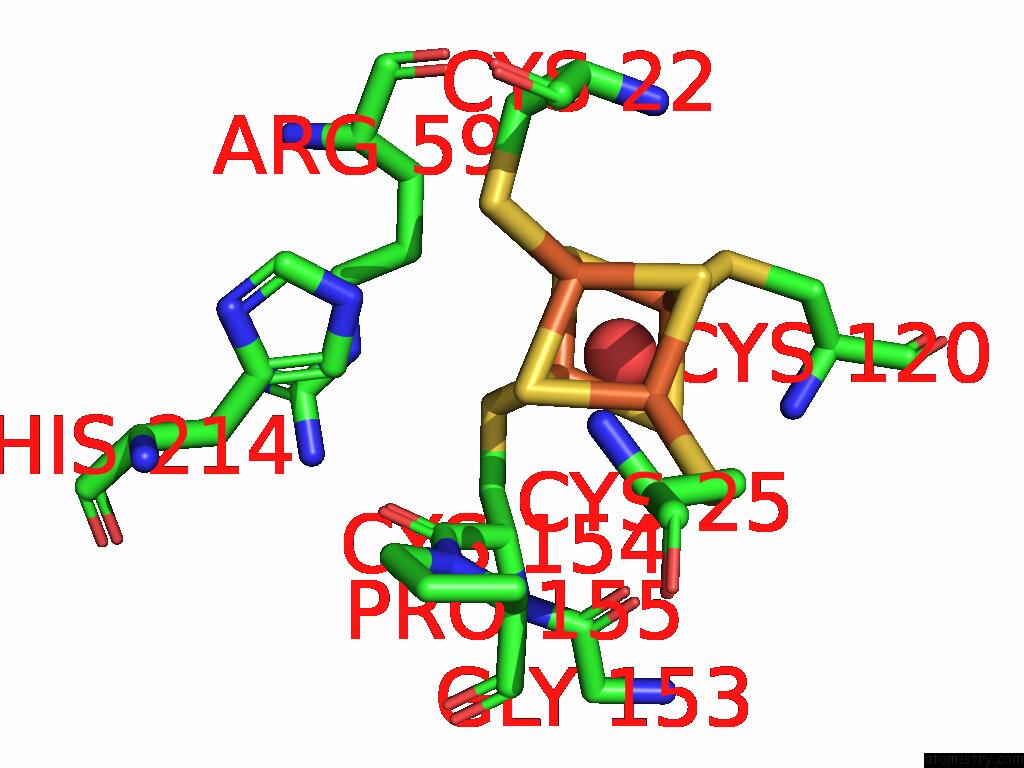

Iron binding site 10 out of 24 in 9erc

Go back to Iron Binding Sites List in 9erc

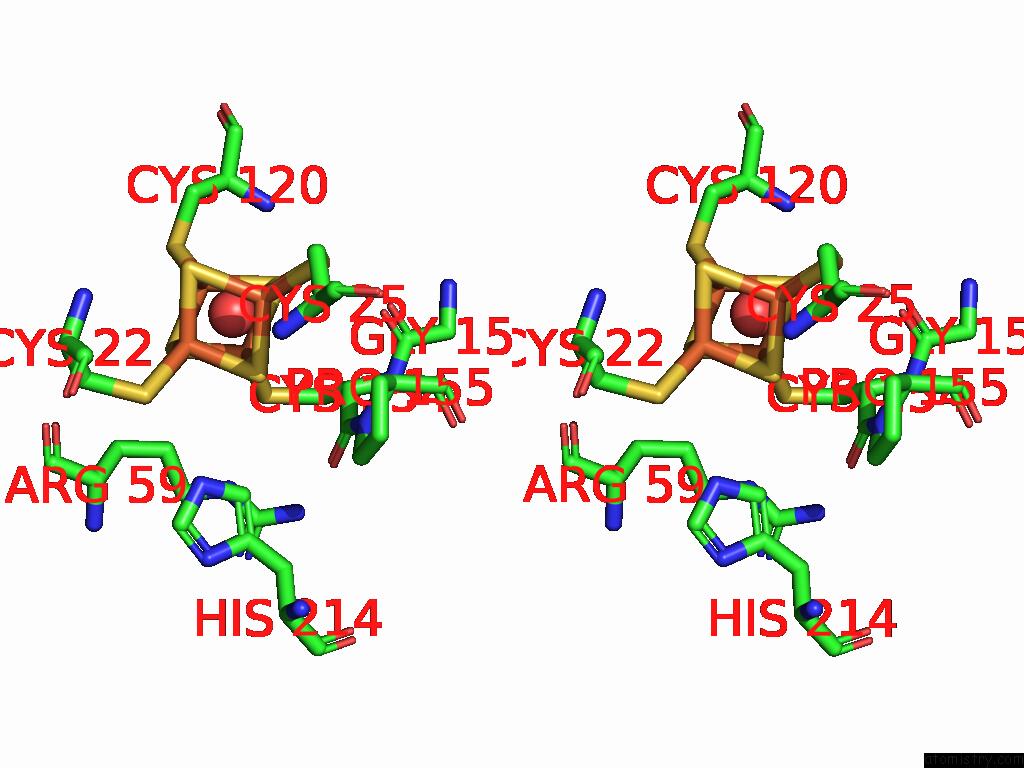

Iron binding site 10 out of 24 in the Hydrogenase-2 Ni-Li State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 10 of Hydrogenase-2 Ni-Li State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe303

b:11.0
occ:1.00
 FE3 S:SF4303 0.0 11.0 1.0
S2 S:SF4303 2.3 10.2 1.0
SG S:CYS154 2.3 11.8 1.0
S4 S:SF4303 2.3 11.5 1.0
S1 S:SF4303 2.3 11.7 1.0
FE1 S:SF4303 2.6 11.4 1.0
FE2 S:SF4303 2.6 11.5 1.0
FE4 S:SF4303 2.8 12.0 1.0
CB S:CYS154 3.4 10.1 1.0
CA S:CYS154 3.4 10.7 1.0
C S:CYS154 3.8 10.2 1.0
S3 S:SF4303 3.8 11.7 1.0
O S:HOH549 3.8 12.1 1.0
O S:CYS154 4.2 11.2 1.0
CG L:ARG59 4.3 11.2 1.0
N S:PRO155 4.3 10.6 1.0
SG S:CYS120 4.4 11.3 1.0
CD2 L:HIS214 4.5 12.0 1.0
SG S:CYS22 4.5 11.9 1.0
NE2 L:HIS214 4.5 11.4 1.0
O S:GLY153 4.6 10.7 1.0
CA S:PRO155 4.7 10.6 1.0
N S:CYS154 4.7 11.1 1.0
SG S:CYS25 4.8 12.3 1.0
NE L:ARG59 4.9 11.0 1.0

Reference:

S.B.Carr, W.Li, K.L.Wong, R.M.Evans, S.E.T.Kendall-Price, P.A.Ash, K.A.Vincent. Glutamate Flick Enables Proton Tunnelling During Fast Redox Biocatalysis To Be Published.
