Iron in PDB 9err: Hydrogenase-2 Ni-Sco State

Enzymatic activity of Hydrogenase-2 Ni-Sco State

All present enzymatic activity of Hydrogenase-2 Ni-Sco State:
1.12.99.6;

Protein crystallography data

The structure of Hydrogenase-2 Ni-Sco State, PDB code: 9err was solved by S.B.Carr, W.Li, K.L.Wong, P.A.Ash, K.A.Vincent, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 64.50 / 1.40
Space group P 21 21 21
Cell size a, b, c (Å), α, β, γ (°) 100.185, 99.755, 168.561, 90, 90, 90
R / Rfree (%) 16.1 / 18.1

Other elements in 9err:

The structure of Hydrogenase-2 Ni-Sco State also contains other interesting chemical elements:

Nickel (Ni) 2 atoms
Magnesium (Mg) 5 atoms

Iron Binding Sites:

Pages:

>>> Page 1 <<< Page 2, Binding sites: 11 - 20; Page 3, Binding sites: 21 - 24;

Binding sites:

The binding sites of Iron atom in the Hydrogenase-2 Ni-Sco State (pdb code 9err). This binding sites where shown within 5.0 Angstroms radius around Iron atom.
In total 24 binding sites of Iron where determined in the Hydrogenase-2 Ni-Sco State, PDB code: 9err:
Jump to Iron binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10;

Iron binding site 1 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

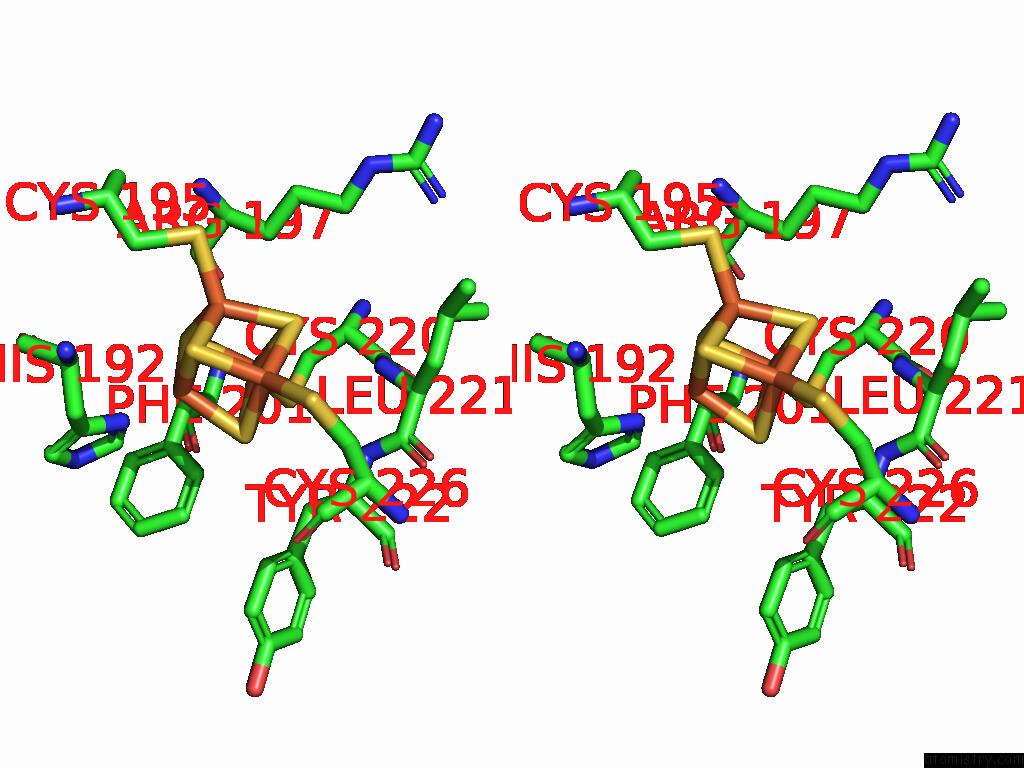

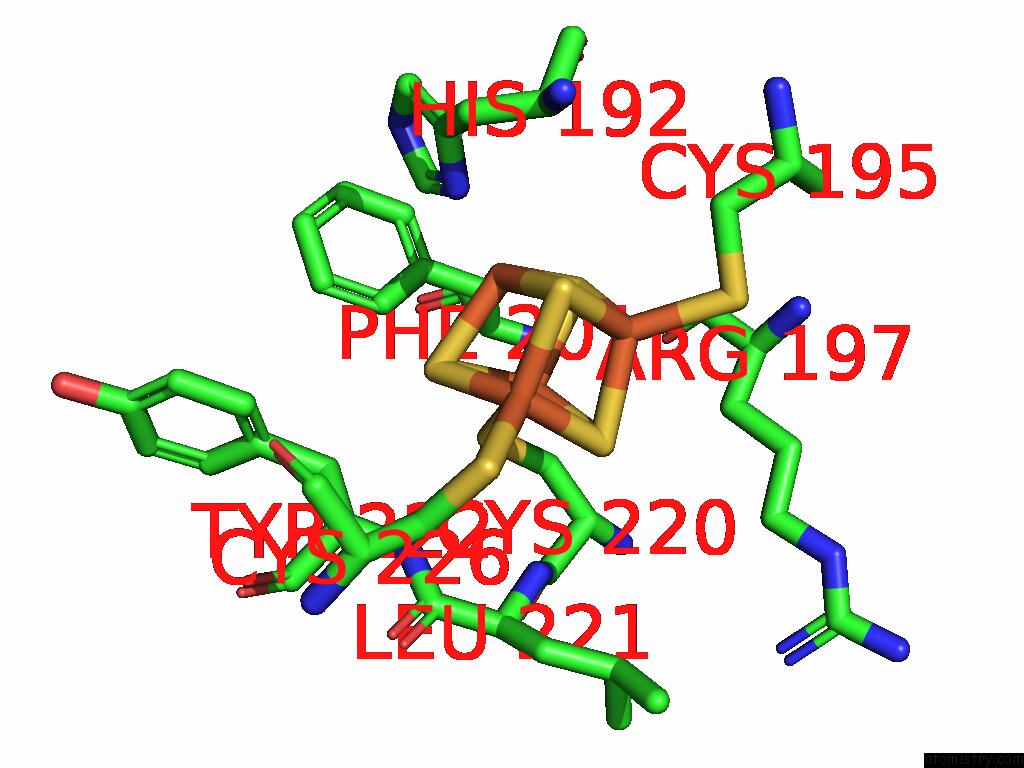

Iron binding site 1 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 1 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe301

b:11.1
occ:1.00
 FE1 S:SF4301 0.0 11.1 1.0
S3 S:SF4301 2.3 10.4 1.0
SG S:CYS220 2.3 11.7 1.0
S2 S:SF4301 2.3 11.0 1.0
S4 S:SF4301 2.3 11.3 1.0
FE4 S:SF4301 2.7 11.1 1.0
FE3 S:SF4301 2.7 11.7 1.0
FE2 S:SF4301 2.8 10.9 1.0
CB S:CYS220 3.4 11.6 1.0
N S:LEU221 3.9 10.5 1.0
S1 S:SF4301 3.9 11.0 1.0
CA S:CYS220 4.0 10.5 1.0
N S:TYR222 4.1 11.3 1.0
C S:CYS220 4.3 10.3 1.0
CB S:PHE201 4.4 12.8 1.0
ND1 S:HIS192 4.5 12.5 1.0
CD2 S:PHE201 4.5 14.7 1.0
CB S:ARG197 4.5 11.3 1.0
O S:ARG197 4.6 11.9 1.0
CB S:TYR222 4.6 11.9 1.0
CA S:TYR222 4.7 10.9 1.0
CE1 S:HIS192 4.8 13.1 1.0
SG S:CYS195 4.8 10.3 1.0
C S:LEU221 4.8 10.9 1.0
C S:ARG197 4.8 12.0 1.0
SG S:CYS226 4.9 10.2 1.0
CG S:PHE201 4.9 13.2 1.0
CA S:LEU221 4.9 9.8 1.0

Iron binding site 2 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

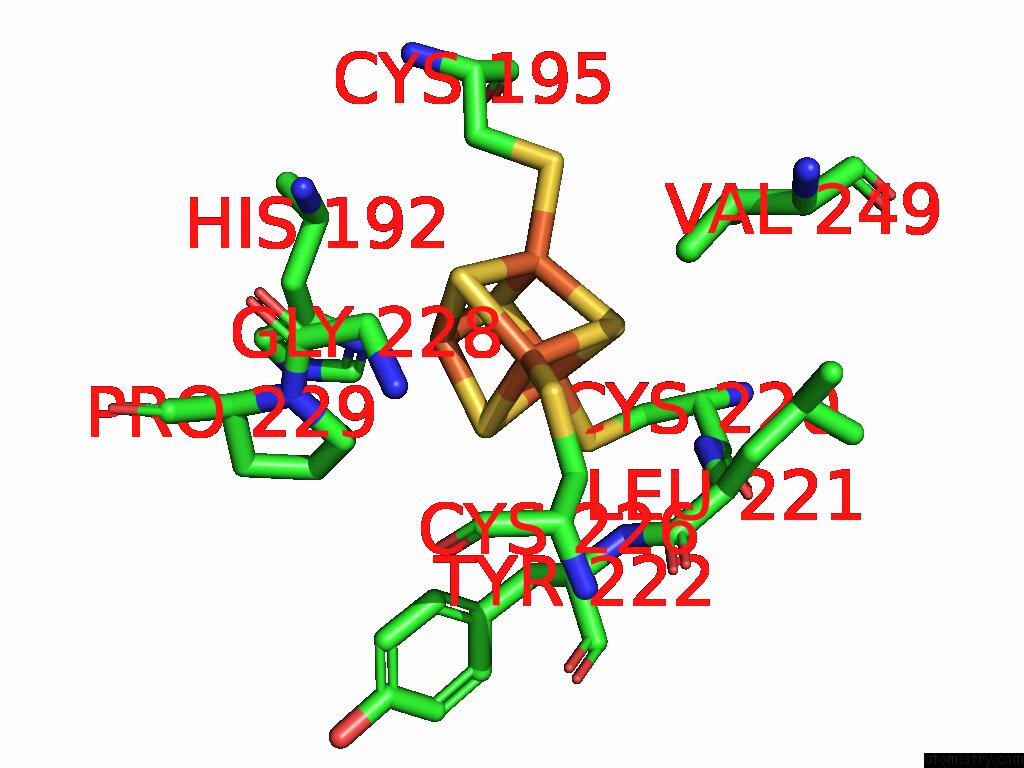

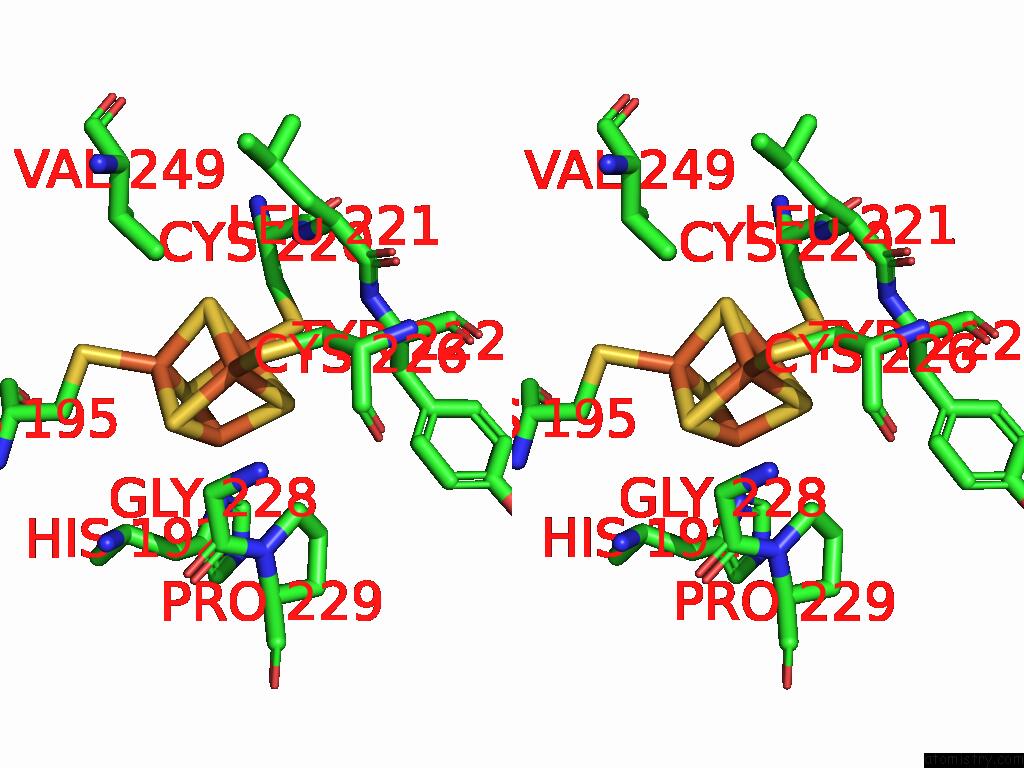

Iron binding site 2 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 2 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe301

b:10.9
occ:1.00
 FE2 S:SF4301 0.0 10.9 1.0
S4 S:SF4301 2.3 11.3 1.0
S1 S:SF4301 2.3 11.0 1.0
SG S:CYS226 2.3 10.2 1.0
S3 S:SF4301 2.3 10.4 1.0
FE4 S:SF4301 2.7 11.1 1.0
FE3 S:SF4301 2.7 11.7 1.0
FE1 S:SF4301 2.8 11.1 1.0
CB S:CYS226 3.2 10.3 1.0
S2 S:SF4301 3.9 11.0 1.0
CD S:PRO229 4.5 11.8 1.0
CA S:GLY228 4.5 11.9 1.0
N S:GLY228 4.5 10.4 1.0
CA S:CYS226 4.5 10.5 1.0
ND1 S:HIS192 4.7 12.5 1.0
SG S:CYS195 4.7 10.3 1.0
SG S:CYS220 4.7 11.7 1.0
CG2 S:VAL249 4.7 10.4 1.0
N S:TYR222 4.7 11.3 1.0
C S:CYS226 4.8 11.0 1.0
N S:LEU221 4.9 10.5 1.0
O S:CYS226 5.0 12.0 1.0
C S:LEU221 5.0 10.9 1.0

Iron binding site 3 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

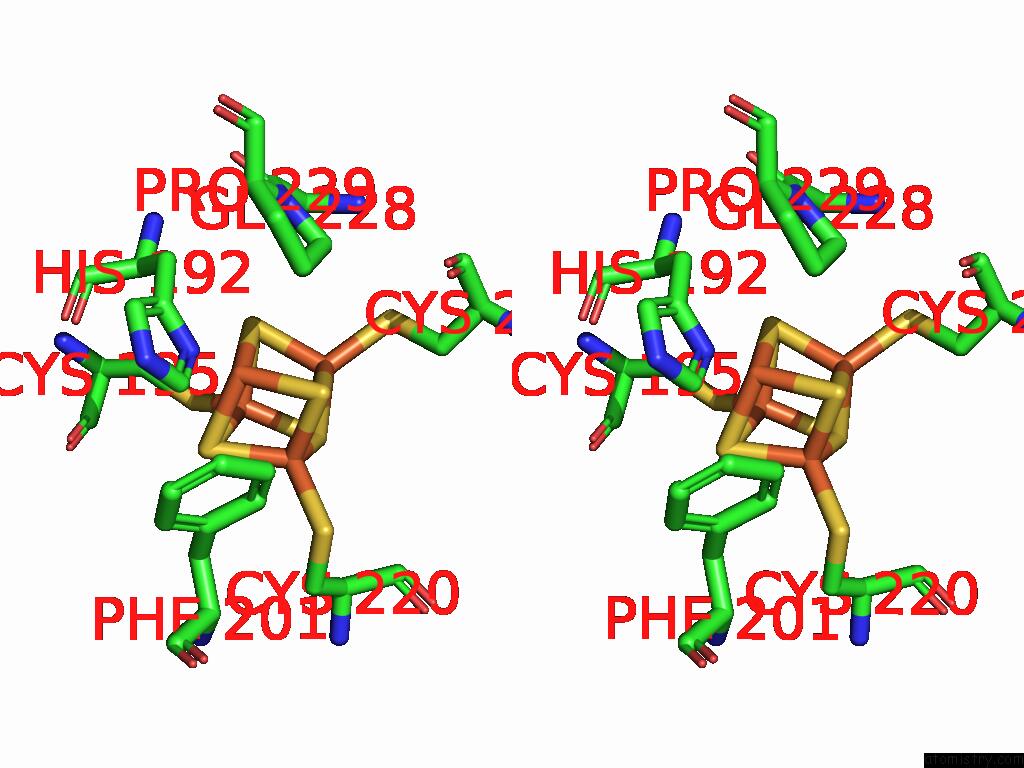

Iron binding site 3 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 3 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe301

b:11.7
occ:1.00
 FE3 S:SF4301 0.0 11.7 1.0
ND1 S:HIS192 2.0 12.5 1.0
S4 S:SF4301 2.3 11.3 1.0
S1 S:SF4301 2.3 11.0 1.0
S2 S:SF4301 2.3 11.0 1.0
FE4 S:SF4301 2.7 11.1 1.0
FE2 S:SF4301 2.7 10.9 1.0
FE1 S:SF4301 2.7 11.1 1.0
CE1 S:HIS192 2.9 13.1 1.0
CG S:HIS192 3.1 12.1 1.0
CB S:HIS192 3.6 11.0 1.0
S3 S:SF4301 3.9 10.4 1.0
CA S:HIS192 3.9 11.0 1.0
NE2 S:HIS192 4.1 12.6 1.0
CD2 S:HIS192 4.2 13.0 1.0
CD S:PRO229 4.3 11.8 1.0
CG S:PRO229 4.3 11.8 1.0
CB S:CYS195 4.6 11.4 1.0
SG S:CYS195 4.6 10.3 1.0
SG S:CYS220 4.7 11.7 1.0
O S:HIS192 4.7 12.2 1.0
CD2 S:PHE201 4.8 14.7 1.0
SG S:CYS226 4.8 10.2 1.0
N S:PRO229 4.8 11.3 1.0
C S:HIS192 4.9 11.2 1.0
N S:HIS192 4.9 10.7 1.0
CA S:GLY228 5.0 11.9 1.0

Iron binding site 4 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

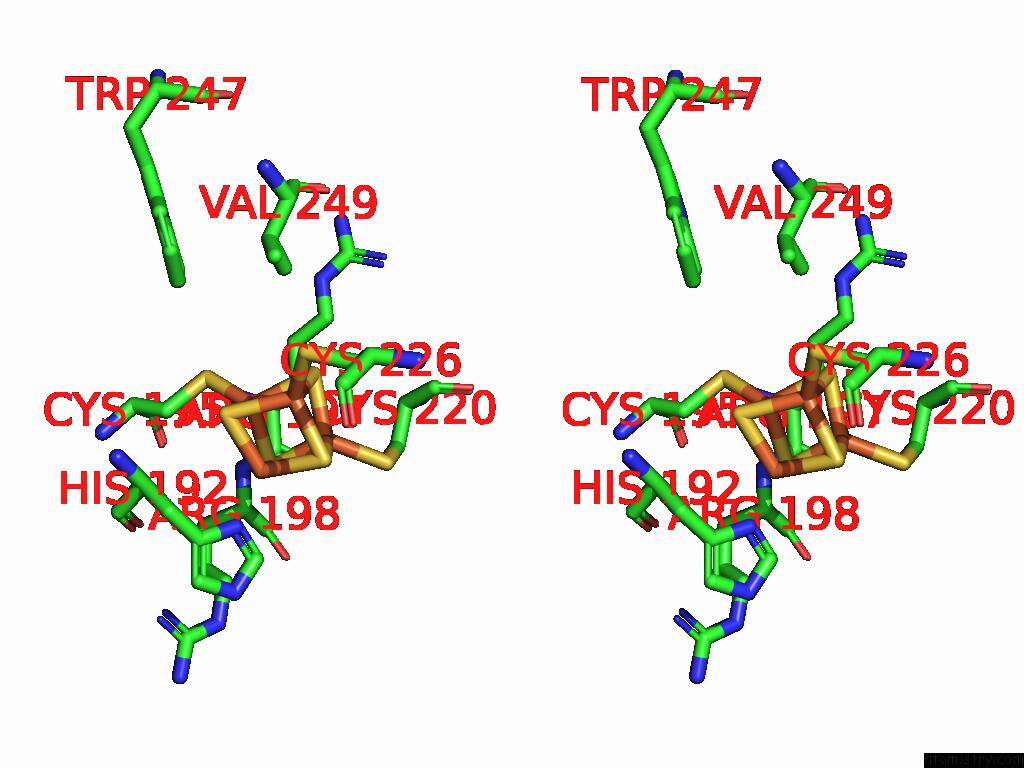

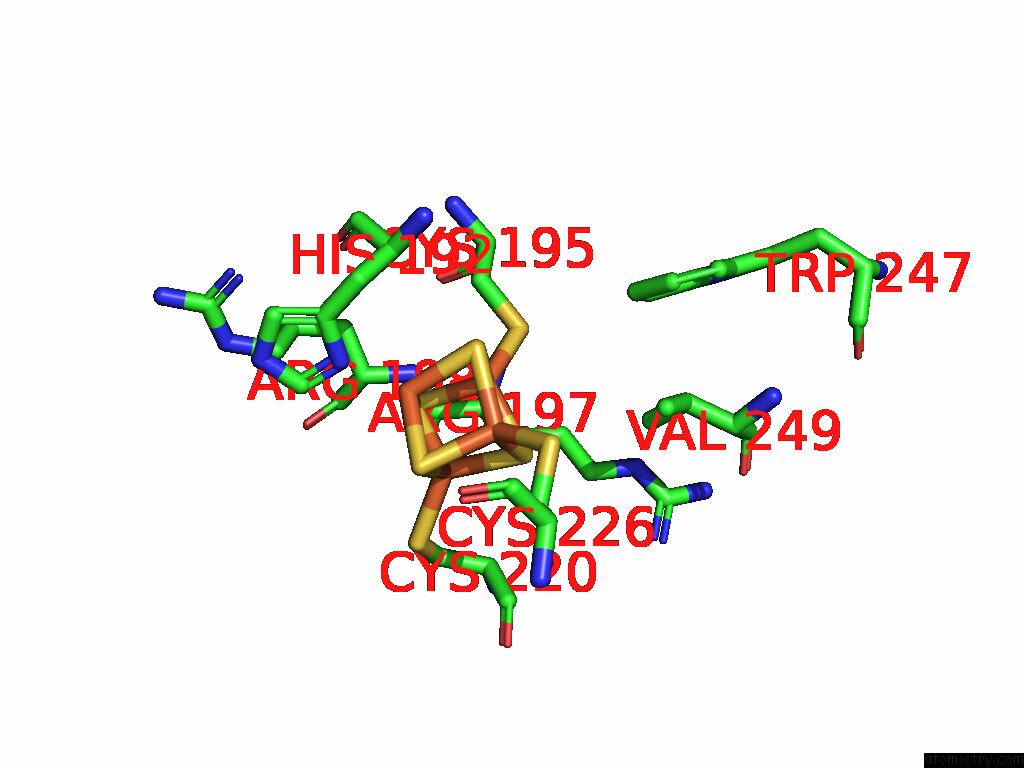

Iron binding site 4 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 4 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe301

b:11.1
occ:1.00
 FE4 S:SF4301 0.0 11.1 1.0
SG S:CYS195 2.2 10.3 1.0
S2 S:SF4301 2.3 11.0 1.0
S3 S:SF4301 2.3 10.4 1.0
S1 S:SF4301 2.3 11.0 1.0
FE3 S:SF4301 2.7 11.7 1.0
FE2 S:SF4301 2.7 10.9 1.0
FE1 S:SF4301 2.7 11.1 1.0
CB S:CYS195 3.1 11.4 1.0
S4 S:SF4301 3.9 11.3 1.0
CB S:ARG197 4.1 11.3 1.0
ND1 S:HIS192 4.5 12.5 1.0
C S:ARG197 4.5 12.0 1.0
CA S:CYS195 4.5 10.0 1.0
N S:ARG197 4.6 11.2 1.0
N S:ARG198 4.6 11.0 1.0
CA S:ARG197 4.6 11.2 1.0
SG S:CYS226 4.8 10.2 1.0
CG S:ARG197 4.8 11.9 1.0
CG1 S:VAL249 4.9 9.8 1.0
C S:CYS195 4.9 10.1 1.0
SG S:CYS220 4.9 11.7 1.0
CA S:HIS192 5.0 11.0 1.0
CH2 S:TRP247 5.0 10.1 1.0

Iron binding site 5 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

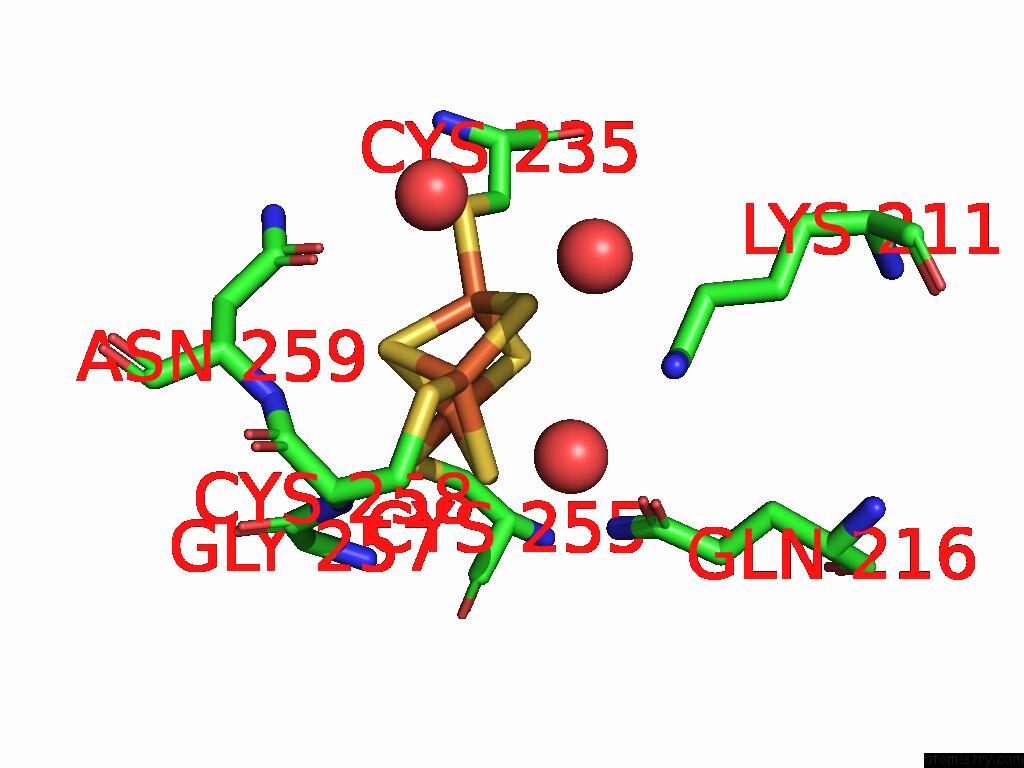

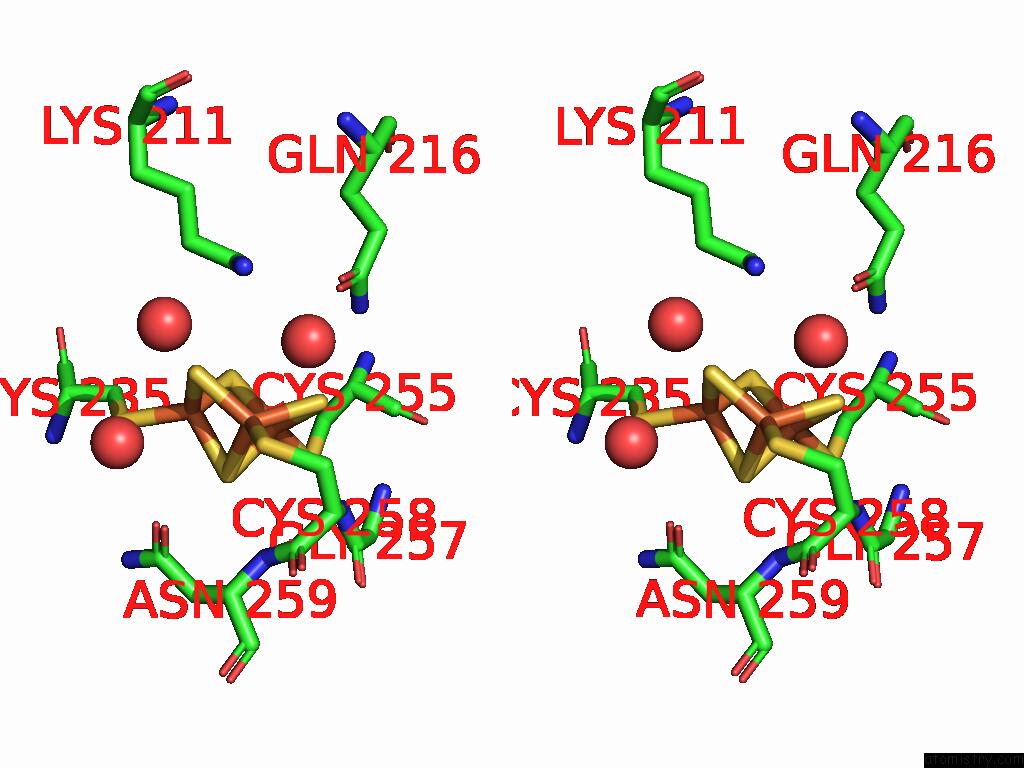

Iron binding site 5 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 5 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe302

b:9.3
occ:1.00
 FE1 S:F3S302 0.0 9.3 1.0
S1 S:F3S302 2.2 9.0 1.0
S3 S:F3S302 2.3 10.3 1.0
S2 S:F3S302 2.3 9.7 1.0
SG S:CYS258 2.3 9.5 1.0
FE3 S:F3S302 2.7 9.4 1.0
FE4 S:F3S302 2.7 9.8 1.0
CB S:CYS258 3.4 9.2 1.0
O L:HOH862 3.6 8.2 1.0
N S:CYS258 3.7 9.5 1.0
S4 S:F3S302 3.8 9.8 1.0
CA S:CYS258 4.0 9.4 1.0
N S:ASN259 4.2 9.1 1.0
O S:HOH489 4.2 10.3 1.0
OD1 S:ASN259 4.2 10.5 1.0
C S:CYS258 4.4 9.7 1.0
SG S:CYS235 4.7 10.4 1.0
C S:GLY257 4.8 9.0 1.0
CG S:ASN259 4.8 10.3 1.0
SG S:CYS255 4.9 10.0 1.0
O S:HOH411 4.9 10.6 1.0
CE L:LYS211 4.9 9.4 1.0
OE1 L:GLN216 4.9 9.5 1.0
N S:GLY257 5.0 8.9 1.0

Iron binding site 6 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

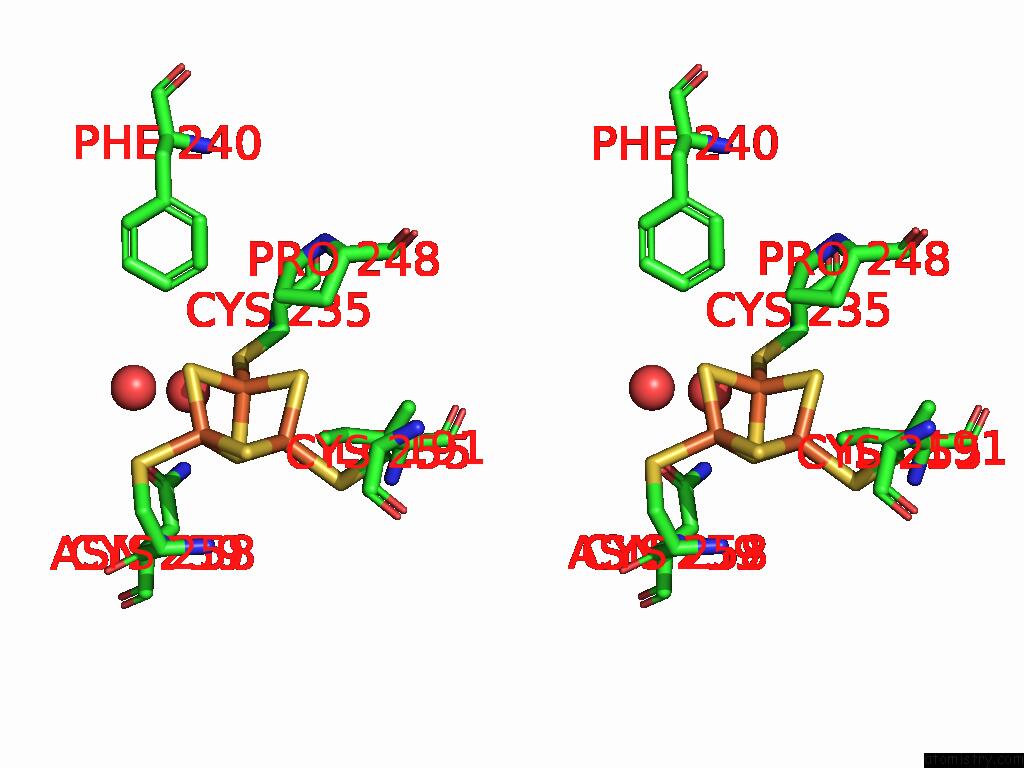

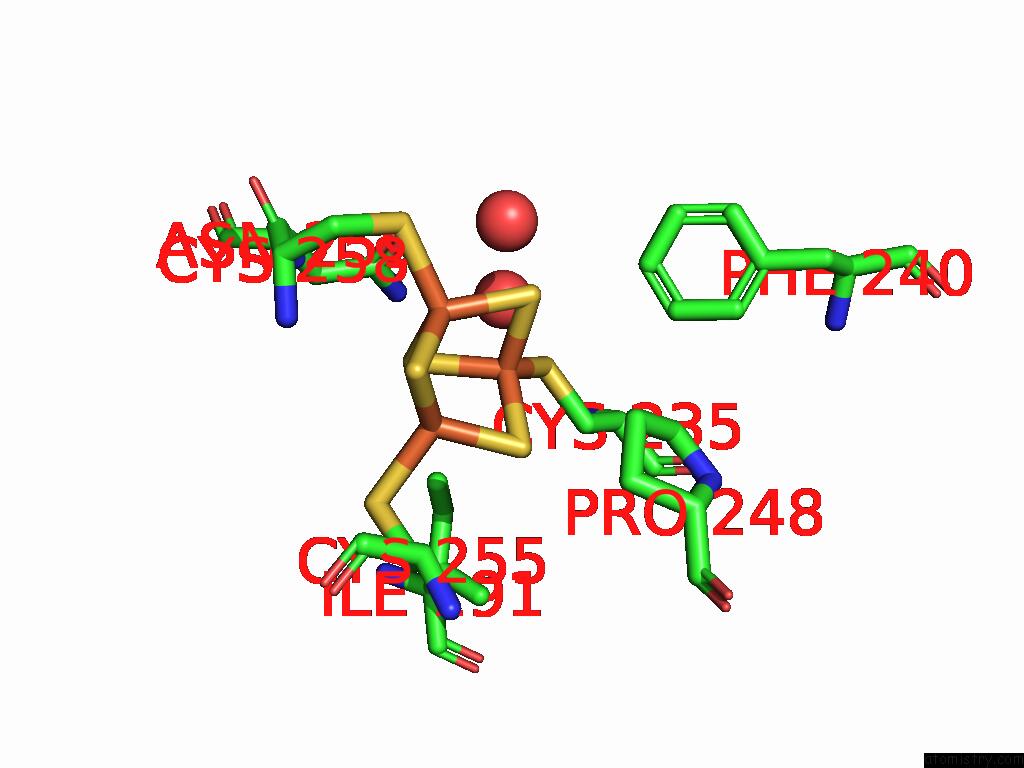

Iron binding site 6 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 6 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe302

b:9.4
occ:1.00
 FE3 S:F3S302 0.0 9.4 1.0
S4 S:F3S302 2.2 9.8 1.0
S1 S:F3S302 2.2 9.0 1.0
SG S:CYS235 2.3 10.4 1.0
S3 S:F3S302 2.3 10.3 1.0
FE1 S:F3S302 2.7 9.3 1.0
FE4 S:F3S302 2.7 9.8 1.0
CB S:CYS235 3.3 10.2 1.0
O S:HOH489 4.0 10.3 1.0
S2 S:F3S302 4.0 9.7 1.0
CD1 S:ILE191 4.2 10.4 1.0
CZ S:PHE240 4.5 9.4 1.0
CE1 S:PHE240 4.5 9.2 1.0
SG S:CYS255 4.7 10.0 1.0
CA S:CYS235 4.7 9.8 1.0
OD1 S:ASN259 4.7 10.5 1.0
SG S:CYS258 4.8 9.5 1.0
O S:HOH533 4.9 10.2 1.0
CD S:PRO248 4.9 8.7 1.0
CG S:PRO248 5.0 8.5 1.0

Iron binding site 7 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

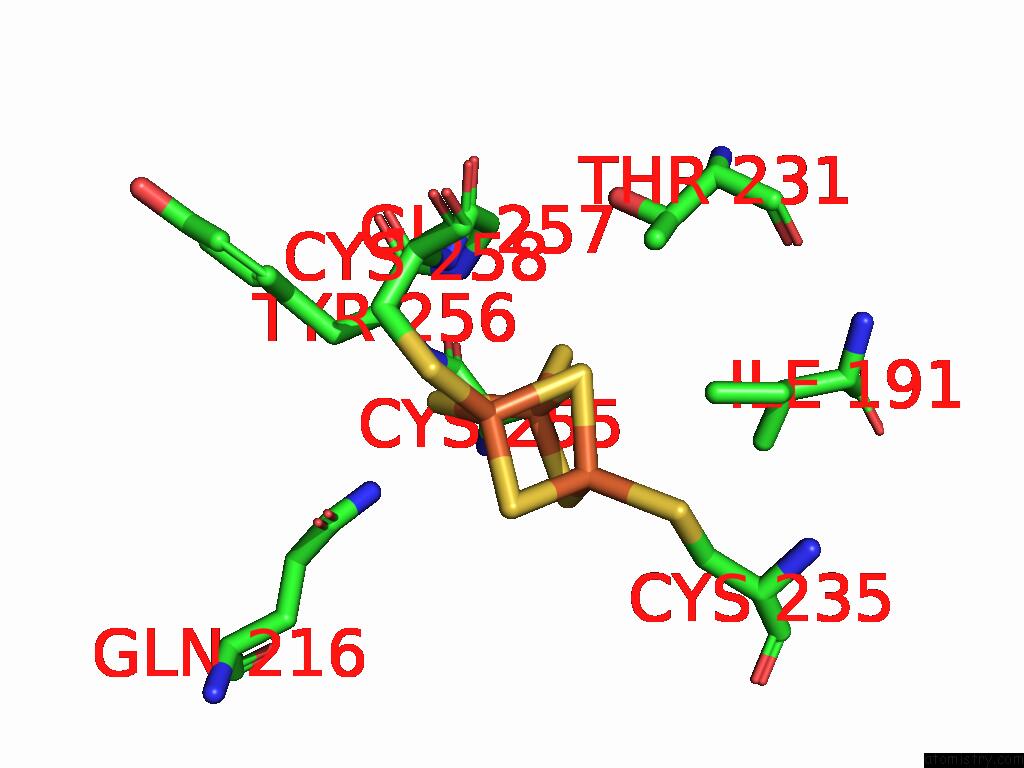

Iron binding site 7 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 7 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe302

b:9.8
occ:1.00
 FE4 S:F3S302 0.0 9.8 1.0
S4 S:F3S302 2.2 9.8 1.0
S3 S:F3S302 2.3 10.3 1.0
SG S:CYS255 2.3 10.0 1.0
S2 S:F3S302 2.3 9.7 1.0
FE3 S:F3S302 2.7 9.4 1.0
FE1 S:F3S302 2.7 9.3 1.0
CB S:CYS255 3.3 9.9 1.0
CA S:CYS255 3.6 9.3 1.0
N S:TYR256 3.8 8.7 1.0
S1 S:F3S302 3.9 9.0 1.0
N S:GLY257 3.9 8.9 1.0
C S:CYS255 4.2 9.1 1.0
CD1 S:ILE191 4.2 10.4 1.0
N S:CYS258 4.3 9.5 1.0
CA S:GLY257 4.5 8.6 1.0
NE2 L:GLN216 4.6 9.2 1.0
SG S:CYS235 4.7 10.4 1.0
CG2 S:THR231 4.8 10.6 1.0
SG S:CYS258 4.9 9.5 1.0
C S:GLY257 4.9 9.0 1.0
C S:TYR256 4.9 9.2 1.0
CA S:TYR256 4.9 9.1 1.0
N S:CYS255 5.0 9.6 1.0

Iron binding site 8 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

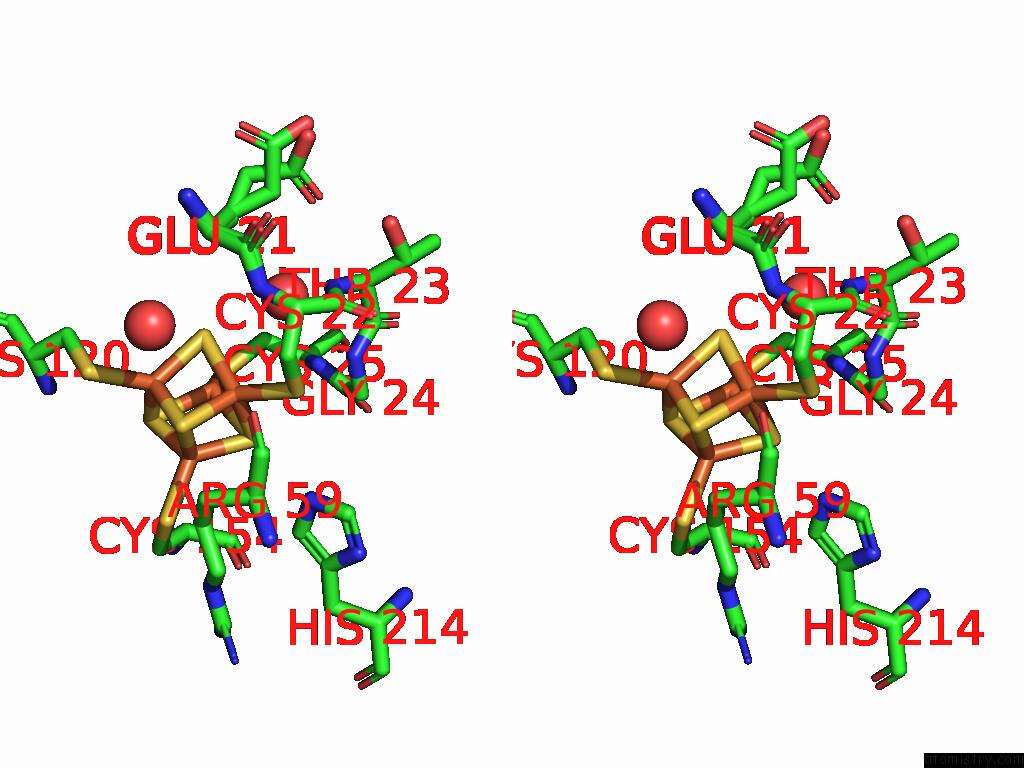

Iron binding site 8 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 8 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe303

b:9.3
occ:1.00
 FE1 S:SF4303 0.0 9.3 1.0
S4 S:SF4303 2.2 9.6 1.0
SG S:CYS22 2.3 9.4 1.0
S2 S:SF4303 2.3 8.5 1.0
S3 S:SF4303 2.3 9.7 1.0
FE3 S:SF4303 2.7 9.3 1.0
FE2 S:SF4303 2.7 9.5 1.0
FE4 S:SF4303 2.7 9.9 1.0
CB S:CYS22 3.3 9.2 1.0
N S:CYS22 3.8 9.0 1.0
S1 S:SF4303 3.8 9.5 1.0
CA S:CYS22 4.0 9.0 1.0
N S:GLY24 4.2 9.5 1.0
O S:HOH422 4.2 9.3 1.0
NE2 L:HIS214 4.2 8.8 1.0
O S:HOH513 4.5 11.8 1.0
CA S:GLY24 4.5 8.4 1.0
C S:CYS22 4.5 9.2 1.0
N S:THR23 4.6 9.8 1.0
SG S:CYS154 4.6 9.4 1.0
SG S:CYS120 4.7 9.7 1.0
N S:CYS25 4.8 9.1 1.0
CD2 L:HIS214 4.8 8.8 1.0
SG S:CYS25 4.9 9.7 1.0
C S:GLU21 4.9 9.7 0.5
CG L:ARG59 5.0 9.2 1.0
C S:GLU21 5.0 10.0 0.5

Iron binding site 9 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

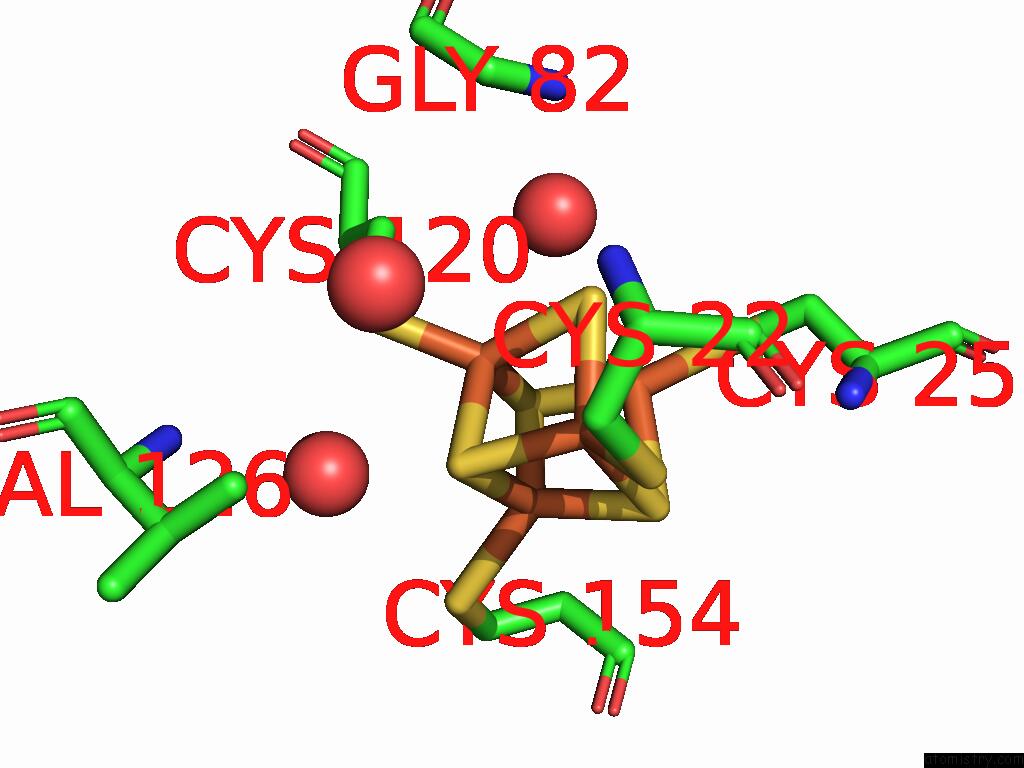

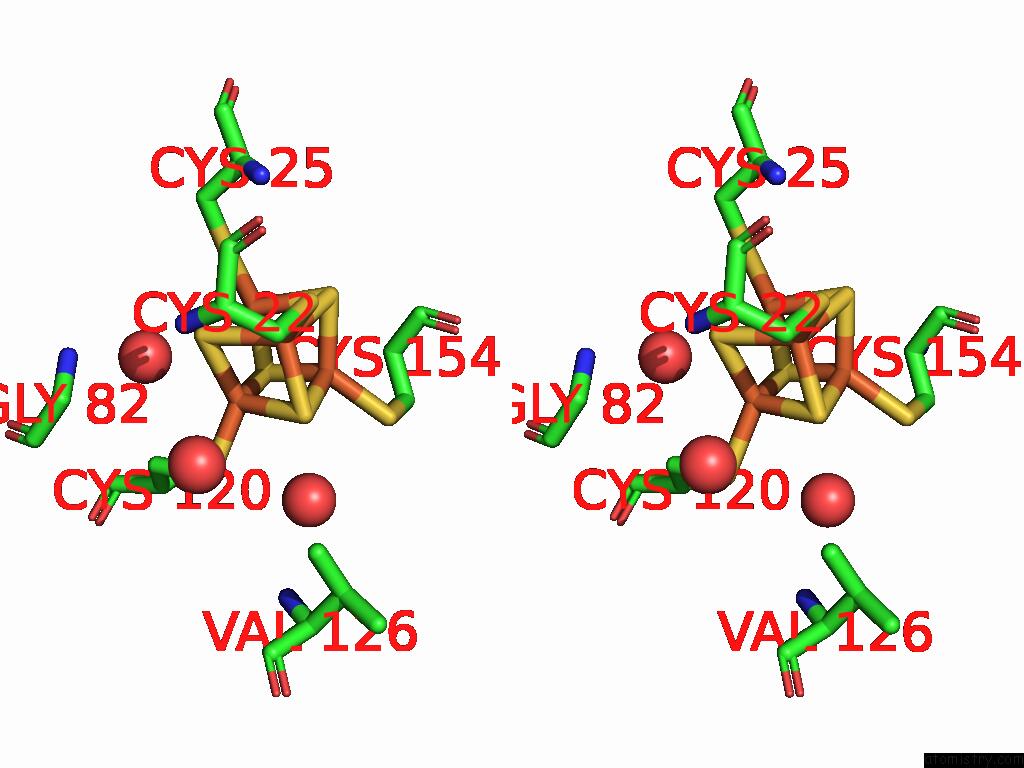

Iron binding site 9 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 9 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe303

b:9.5
occ:1.00
 FE2 S:SF4303 0.0 9.5 1.0
S3 S:SF4303 2.2 9.7 1.0
SG S:CYS120 2.3 9.7 1.0
S4 S:SF4303 2.3 9.6 1.0
S1 S:SF4303 2.3 9.5 1.0
FE3 S:SF4303 2.7 9.3 1.0
FE1 S:SF4303 2.7 9.3 1.0
FE4 S:SF4303 2.8 9.9 1.0
CB S:CYS120 3.2 9.9 1.0
O S:HOH534 3.8 9.9 1.0
O S:HOH434 3.9 9.6 1.0
S2 S:SF4303 3.9 8.5 1.0
O S:HOH513 3.9 11.8 1.0
N S:CYS120 4.0 9.8 1.0
CA S:CYS120 4.2 10.1 1.0
SG S:CYS154 4.4 9.4 1.0
SG S:CYS25 4.8 9.7 1.0
SG S:CYS22 4.9 9.4 1.0
CA S:GLY82 5.0 10.4 1.0
N S:GLY82 5.0 9.7 1.0
CG1 S:VAL126 5.0 9.8 1.0

Iron binding site 10 out of 24 in 9err

Go back to Iron Binding Sites List in 9err

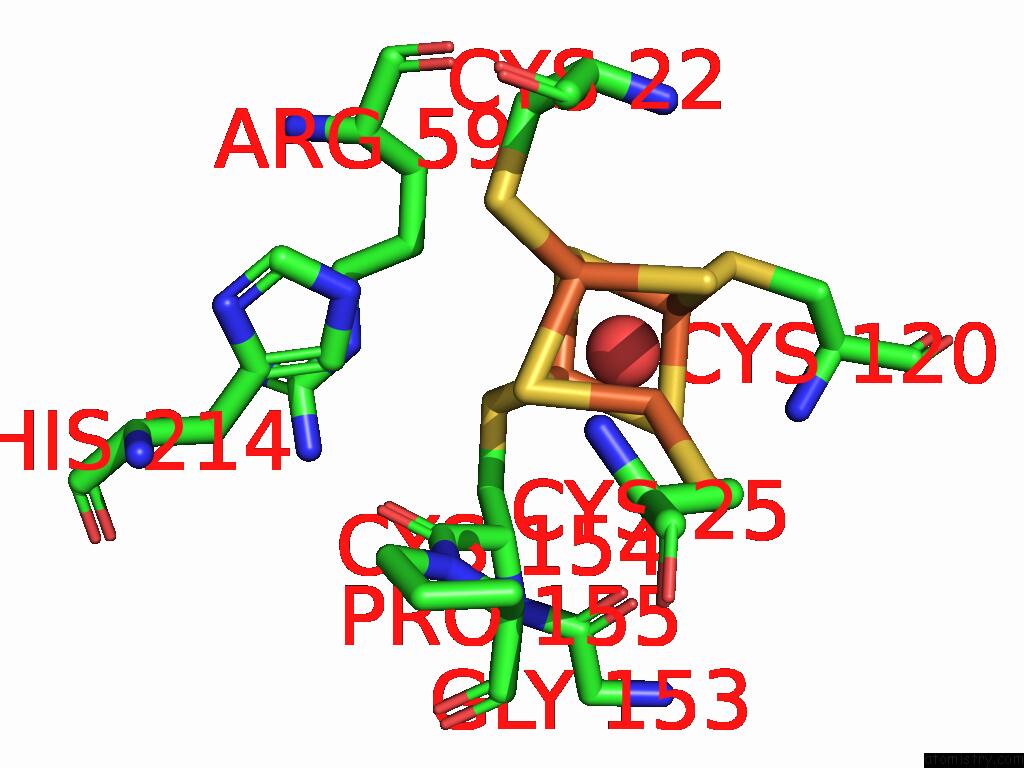

Iron binding site 10 out of 24 in the Hydrogenase-2 Ni-Sco State


Mono view


Stereo pair view

A full contact list of Iron with other atoms in the Fe binding site number 10 of Hydrogenase-2 Ni-Sco State within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Fe303

b:9.3
occ:1.00
 FE3 S:SF4303 0.0 9.3 1.0
S2 S:SF4303 2.2 8.5 1.0
SG S:CYS154 2.3 9.4 1.0
S1 S:SF4303 2.3 9.5 1.0
S4 S:SF4303 2.3 9.6 1.0
FE2 S:SF4303 2.7 9.5 1.0
FE1 S:SF4303 2.7 9.3 1.0
FE4 S:SF4303 2.7 9.9 1.0
CB S:CYS154 3.4 8.6 1.0
CA S:CYS154 3.4 9.0 1.0
C S:CYS154 3.8 9.6 1.0
O S:HOH534 3.9 9.9 1.0
S3 S:SF4303 3.9 9.7 1.0
O S:CYS154 4.2 9.3 1.0
N S:PRO155 4.3 8.6 1.0
CG L:ARG59 4.4 9.2 1.0
SG S:CYS120 4.4 9.7 1.0
CD2 L:HIS214 4.4 8.8 1.0
O S:GLY153 4.5 8.9 1.0
SG S:CYS22 4.6 9.4 1.0
NE2 L:HIS214 4.6 8.8 1.0
CA S:PRO155 4.7 8.3 1.0
N S:CYS154 4.7 9.1 1.0
SG S:CYS25 4.8 9.7 1.0
NE L:ARG59 4.8 8.9 1.0

Reference:

S.B.Carr, W.Li, K.L.Wong, R.M.Evans, S.E.T.Kendall-Price, P.A.Ash, K.A.Vincent. Glutamate Flick Enables Proton Tunnelling During Fast Redox Biocatalysis To Be Published.
